Installing and Commissioning Temperature Sensors for Reliable Readings

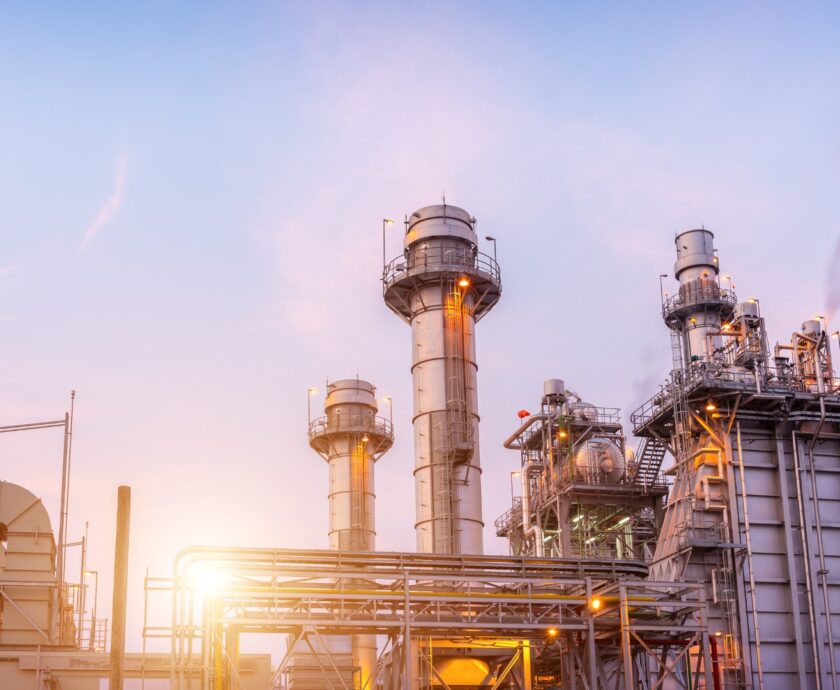

A perfectly calibrated sensor means nothing if it’s poorly installed. Across industrial environments such as refineries, power plants, and chemical reactors, how a sensor is fitted determines whether it measures accurately, lasts as expected, and keeps operations safe.

Our installation and operating manuals bridge the gap between laboratory precision and real-world performance, ensuring every thermocouple and RTD delivers stable, reliable readings from day one and throughout its service life.

1. Why Installation Quality Affects Accuracy

A perfectly calibrated sensor can lose precision the moment it’s mounted poorly or wired incorrectly.
There are three major contributors to measurement error during installation:

• Poor Surface Contact – In surface or tube-skin measurements, gaps between the sensor and process surface act as thermal resistors, distorting true readings.
• Grounding Errors – Incorrect junction grounding or multiple ground paths can cause electrical interference and signal offsets.
• Insulation Loss – Damaged or contaminated insulation (especially MgO in MI cables) leads to leakage currents and drift over time.


Each of these errors reduces both the accuracy and the longevity of the instrument.

1. Preparation Checklist – Before installation, confirm that each assembly meets specification and calibration requirements.
2. Material Verification
   Confirm sensor and thermowell materials per design documentation.
3. Calibration Certificates
   Verify traceable calibration certificates (IEC 60584 for thermocouples, IEC 60751 for RTDs). Reference points should match the operating temperature ranges specified in the control system.
4. Wiring and Documentation Plan
   Review cable routing, junction boxes, and terminal block locations to avoid EMI sources such as variable-speed drives or motor feeders.
5. Thermowell Integrity
   For installations with thermowells, confirm that wake frequency and vibration stress analyses comply with ASME PTC 19.3 TW-2016.

III. Mounting Best Practices

Correct mechanical installation ensures the sensor measures the process temperature — not the environment.

1. Orientation and Depth

   • Install thermowells facing downstream in flowing media to minimize wake vibration and stress.
   • Key Considerations for Insertion Length thermowells (API/Industry Best Practice):
     • Minimum Immersion: API RP 551 recommends a minimum immersion of 2 inches.
     • Optimal Placement: The tip should reach the center of the pipe or at least 1/3 of the pipe diameter to ensure accurate measurement.
     • Minimum immersion length for sensors without a thermowell should be 7–10 times the sensor tip diameter and deep enough to reach representative flow

2. Compression Fittings and Contact Pressure

   • Use stainless-steel compression fittings for adjustable immersion; tighten to achieve firm contact without over-stressing the sheath.
   • For tube-skin thermocouples, weld the contact pad securely and maintain full metal-to-metal contact with the tube surface.

3. Sensor Replacement

   • For assemblies with replaceable inserts, ensure spring loading provides consistent thermal contact without axial movement.
   • Always recheck torque after the first thermal cycle.


Following these steps minimizes lag, vibration fatigue, and signal instability.

1. Electrical and Grounding Guidelines

Electrical quality determines signal reliability as much as mechanical precision.

1. Shielding and Isolation

   • Route low-level thermocouple or RTD signals in separate conduits from high-voltage cables.
   • Use shielded, twisted-pair extension wires; connect the shield to ground at one end only to prevent loops.

2. Grounding

   • For insulated-junction thermocouples, ensure the sheath is grounded only through the transmitter or junction head.
   • Ground RTD circuits via dedicated terminals to maintain a stable reference point.

3. Noise Immunity

   • Place transmitters close to the sensor head where possible, converting low-level mV or Ω signals to robust 4–20 mA outputs — a best practice recommended in Thermo Electric instrumentation design.

4. Insulation Testing

   • Verify insulation resistance (typically >100 MΩ at ambient, tested at 100 VDC) to confirm no moisture ingress or cable degradation before energizing the loop.

1. Commissioning and Validation

After installation, commissioning ensures that every measurement point functions as designed.

Verification Steps

1. Continuity and Polarity Check

   • Confirm correct wiring polarity (e.g., positive leg of Type K = chromel). Reverse connections cause inverted readings.

2. Baseline Data Recording

   • Log initial readings under stable operating conditions. These serve as future reference points for drift analysis and predictive maintenance.

3. Loop Check

   • Measure full circuit resistance from sensor to transmitter. Compare against design to detect loose or corroded connections.

4. Functional Simulation

   • If using smart transmitters, simulate inputs to confirm scaling, alarm thresholds, and communication (HART or digital protocol) are correctly configured.

5. Documentation

   • Record sensor serial numbers, calibration data, and mounting position. Retain this record within the plant’s Computerized Maintenance Management System (CMMS) for lifecycle traceability.

Wrapping Up

Reliable temperature measurement begins long before the first reading; it starts with correct installation and commissioning.

By following Thermo Electric’s proven practices and adhering to ASME PTC 19.3 TW-2016 guidelines, engineers can achieve stable, accurate, and drift-free measurements for years of operation.

Whether it’s a single thermocouple or a complex multipoint assembly, every detail, from contact pressure to grounding, shapes the reliability of your process data.
