Thermal Response time calculator

Are your temperature sensors lying to your control system?

We understand the frustration of chasing ghost oscillations and overshoots in your control loops. The reality is, your sensors aren’t malfunctioning—they are just battling thermal lag. It takes time for heat to penetrate the outer sheath and reach the measuring element, and ignoring this physical delay can wreck your process stability.

To help you bridge the gap between process reality and control theory, we are thrilled to launch our NEW Thermal Response Time Estimator!

This advanced engineering tool helps you instantly quantify thermal lag, calculate the exact Time Constant (τ), and determine the 5τ Settling Time so you know exactly when your sensor is fully stabilized.

Why You Need This Tool in Your Toolkit

Built on a hybrid empirical model that combines certified ASTM STP 470A physical test data with advanced thermodynamic equations, our estimator removes the guesswork from sensor design.

• Optimize PID Control Loops: A slow sensor is a leading cause of overshoot. Knowing your exact settling time allows you to tune your PID controllers with pinpoint accuracy.
• Analyze the “Thermowell Penalty”: Curious how much lag a protection tube really adds? Check the thermowell box to instantly factor in the massive thermal mass and insulating air gap.
• Surface vs. Immersion Decisions: Quickly evaluate if a non-invasive surface pad mounted to a pipe responds fast enough, or if an invasive wetted probe is strictly necessary for your fluid dynamics.
• Make Informed Trade-offs: Find the perfect balance between mechanical durability (thick, ungrounded probes) and thermal speed (thinner, exposed probes).

How It Works

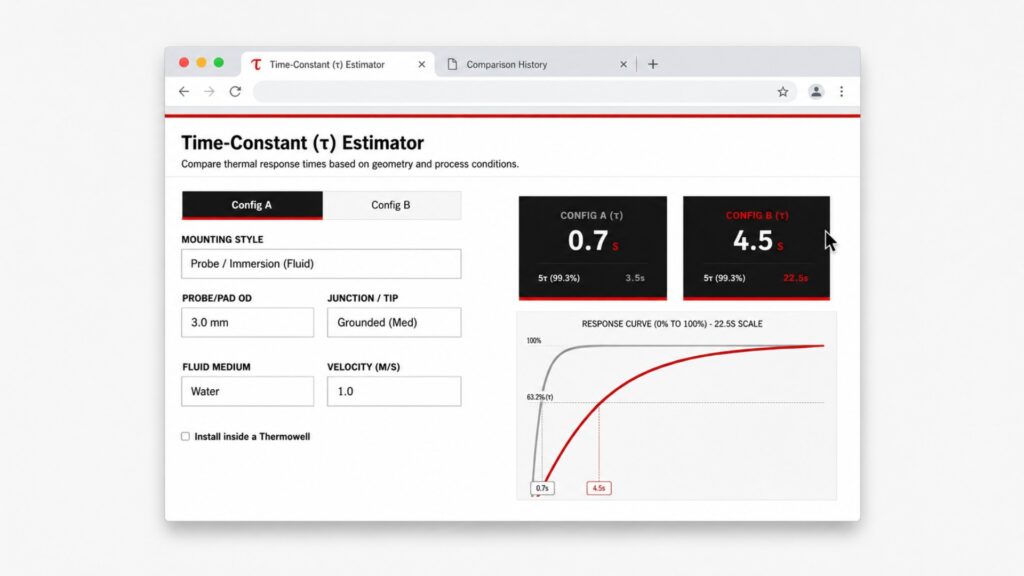

We designed the tool around an intuitive A/B Comparison layout so you can instantly see how design changes impact your readings:

1. Set Your Baseline (Config A): Choose your mounting style, sensor geometry (OD, junction style), and process conditions like fluid medium and flow velocity.
2. Test an Alternative (Config B): Tweak a variable. Compare a 6.0mm probe to a 3.0mm probe, or see what happens when your fluid flow drops to a static 0.0 m/s.

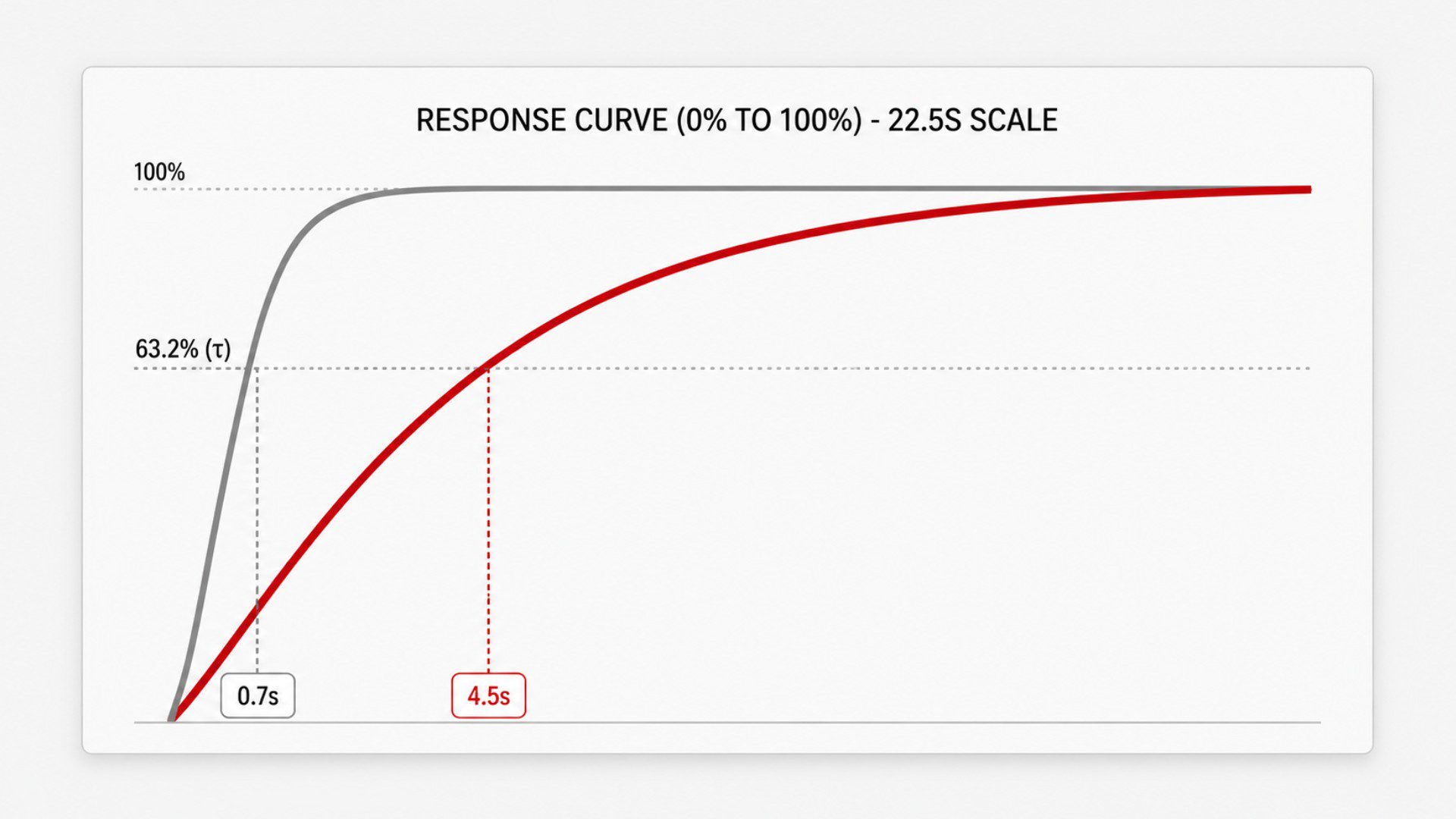

3. View the Results: The tool generates a real-time asymptotic response curve. Track the vertical markers to see exactly when each configuration crosses the critical 63.2% and 99.3% thresholds!

Stop letting thermal lag dictate your efficiency. Design smarter, tune faster, and get the exact response times your process demands.
