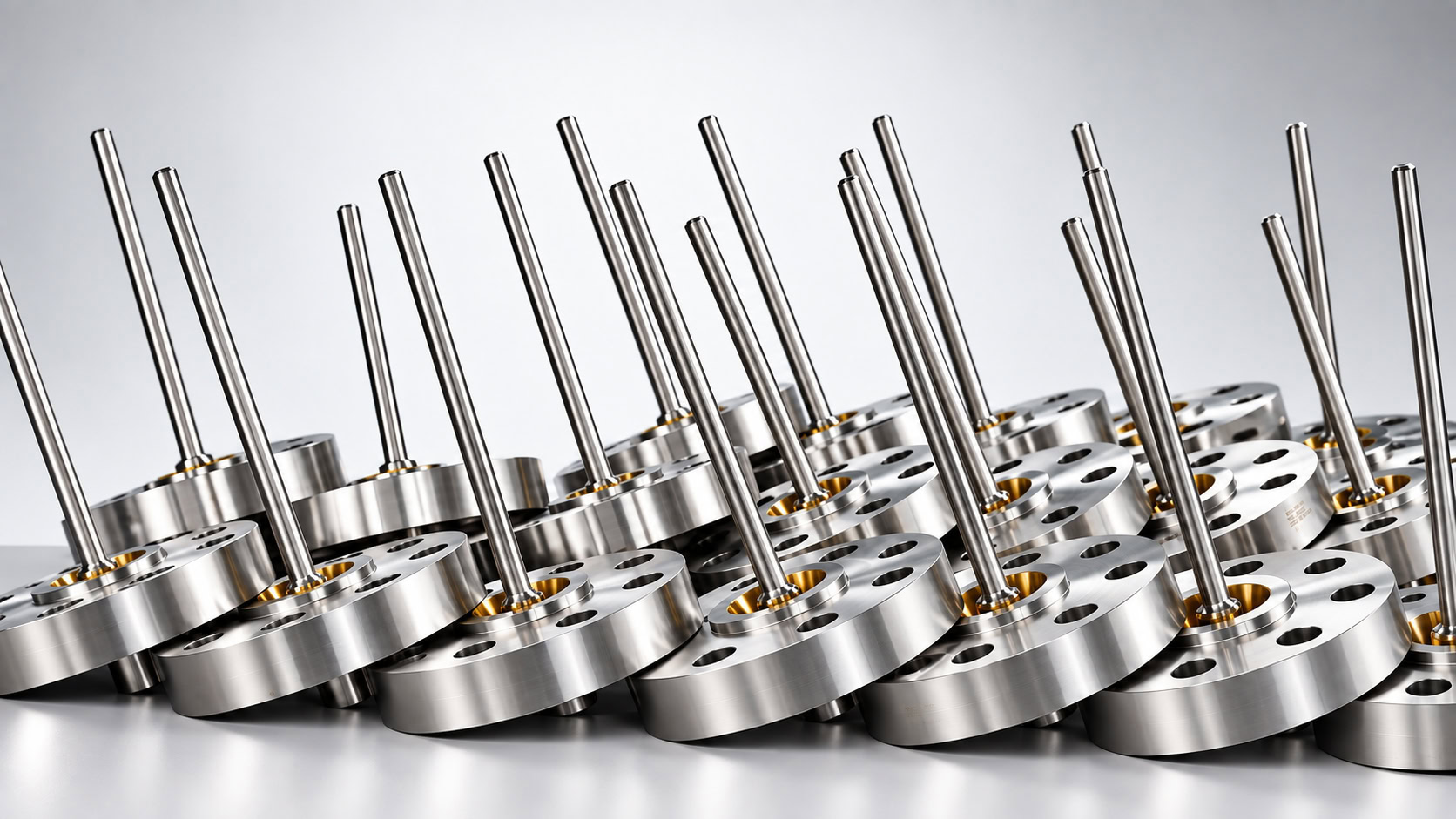

A thermowell can satisfy pressure and material requirements yet remain vulnerable to flow-induced vibration. When fluid passes a thermowell, alternating vortices create fluctuating forces. If the excitation approaches a structural natural frequency, vibration and cyclic stress can increase sharply, raising the risk of fatigue failure.
A wake-frequency calculation is the structured way to test a proposed thermowell against the stated process conditions. It is not a generic pass mark for a drawing, and it is only as reliable as the inputs, geometry and operating cases supplied.
Which standard applies?
The current ASME listing identifies PTC 19.3 TW-2016 as the applicable thermowell standard. It covers straight, tapered and stepped thermowells machined from bar stock within defined dimensional and installation limits.
Fabricated pipe thermowells, welded construction along the shank or tip, and specially structured surfaces such as spiral ridges fall outside the standard’s general calculation rules. Sensor vibration inside the bore, attachment details outside the defined arrangements and measurement accuracy are also separate engineering questions.
What the calculation is checking
The assessment connects fluid behaviour, thermowell geometry and material strength. A complete report should show, at minimum, the recognised ASME acceptance checks for:
- frequency relationship between vortex excitation and the thermowell natural frequency;
- dynamic or fatigue stress;
- steady-state bending stress;
- pressure or hydrostatic limits.
A pass should be traceable to the precise operating case and thermowell revision. A single green result without inputs, assumptions and margins is not enough for design approval.
Inputs required before calculation
Which process data are required?
The calculation needs the actual operating envelope, not only a nominal line condition. Typical inputs include:
- fluid or gas identity;
- minimum, normal and maximum temperature;
- minimum, normal and maximum pressure where relevant;
- maximum velocity or flow rate with enough line data to establish velocity;
- density at the calculation condition;
- dynamic or kinematic viscosity as required by the calculation method;
- pipe inside diameter and installation orientation;
- any shielded or unsupported length created by nozzles, insulation or stand-off arrangements.
Density and viscosity must correspond to the stated temperature and pressure. Reusing ambient properties for a hot, compressed or changing process can distort the result.
Which thermowell data are required?
The mechanical model requires the released geometry and material, including:
- straight, tapered or stepped stem profile;
- insertion and unsupported length;
- root and tip diameters;
- bore diameter;
- tip thickness;
- step dimensions and radii where applicable;
- process connection and support arrangement;
- thermowell material and the material-property basis used at temperature.
Small geometry changes can alter both stiffness and stress. The calculation should therefore identify the drawing number and revision it assesses.
How should the seven-step selection workflow be controlled?
1. Define every credible operating case
Include start-up, normal operation, maximum throughput, upset and any alternative fluid condition that changes velocity, density or temperature. The most severe vibration case is not always the highest pressure or highest temperature case.
2. Confirm the standard is applicable
Check construction, stem form, dimensions and installation arrangement against the scope of ASME PTC 19.3 TW. Do not force an out-of-scope design through an in-scope calculator.
3. Lock the geometry and material basis
Use controlled dimensions from the proposed drawing. Confirm corrosion allowance, bore, unsupported length and temperature-dependent material data.
4. Run and document the calculation
Record the software or method, standard edition, input values, unit system and results for every operating case. The report should expose margins, not only pass/fail labels.
5. Resolve failures deliberately
Possible changes include reducing unsupported length, increasing stem diameter, changing the stem profile, selecting another material, altering the mounting position or reviewing the process velocity. Each change has consequences for response time, insertion into the representative flow region, pressure drop, maintainability and measurement bias.
6. Recheck measurement performance
A mechanically conservative thermowell may respond more slowly or place the sensor too close to a pipe wall. Mechanical adequacy and representative temperature measurement must be reviewed together.
7. Control the final design
Issue the calculation with the approved drawing and process-data revision. If the line conditions, insertion length, bore, material or stem dimensions change, determine whether recalculation is required.
When is a calculation required and which case controls?
Does every thermowell need a wake-frequency calculation?
The project specification, process risk and applicable engineering standards determine the requirement. High-velocity, high-density, long-insertion or fatigue-sensitive services deserve particular attention, but the calculation decision should be recorded for every tag.
Is maximum flow always the worst case?
Not automatically. Temperature, pressure, density, viscosity and structural properties change the frequency and stress relationships. Evaluate the credible operating envelope rather than assuming one condition controls.
What do shortening and a calculation pass actually mean?
Can shortening the thermowell solve a failed calculation?
It may improve structural performance, but it can move the sensing tip away from a representative process region and increase conduction error. The measurement consequence must be checked before accepting the change.
Does a calculation pass guarantee unlimited service life?
No. The result is conditional on the stated inputs and the standard’s model. Corrosion, erosion, process transients, installation damage, unsupported sensor motion and later operating changes remain relevant.
Common causes of misleading results
- using nominal instead of maximum process velocity;
- mixing properties from different temperature or pressure conditions;
- confusing insertion length with unsupported length;
- omitting the length shielded by a nozzle or stand-off;
- selecting the wrong stem profile;
- using a material name without the correct elevated-temperature data;
- calculating only one operating case;
- assuming a pass also proves temperature accuracy;
- applying the method to an out-of-scope fabricated or surface-structured design;
- retaining an old calculation after the drawing or process basis changes.
What about helical or structured thermowells?
Helical strakes and other structured surfaces are intended to disturb coherent vortex shedding. However, ASME explicitly identifies thermowells with specially designed surface structures as outside PTC 19.3 TW’s general scope. Their assessment requires an agreed engineering route supported by appropriate analysis, test evidence and project acceptance criteria.
This distinction should be made clear in project documentation. A conventional PTC 19.3 TW calculation should not be presented as direct validation of a geometry the standard excludes.
Turn the calculation into a controlled engineering record
The value of a wake-frequency calculation lies in the design decisions it supports. A defensible package links verified process data to a controlled thermowell drawing, records every operating case, states the standard’s scope and preserves the results with the final tag documentation.
