MI-Cable TC / Pt100 Inserts Ex eb Approved Sensors IECEx

MI-Cable TC/Pt100 Inserts Ex eb Approved Sensors IECEx

Our MI-Cable TC / Pt100 Inserts Ex eb Approved Sensors IECEx are part of Thermo Electric’s hazardous-area temperature sensing range. Product code A101r is retained for identification. The datasheet should be reviewed against the required approval, process conditions and installation details.

Product code: A101r

Ordering information: Quote product code A101r when enquiring so the correct datasheet variant can be referenced.

Download datasheet

Enquire about this product: Contact Thermo Electric with the product code, application details and any approval requirements so the team can confirm the correct specification.

SKU:A101r-7332 Categories:, ,

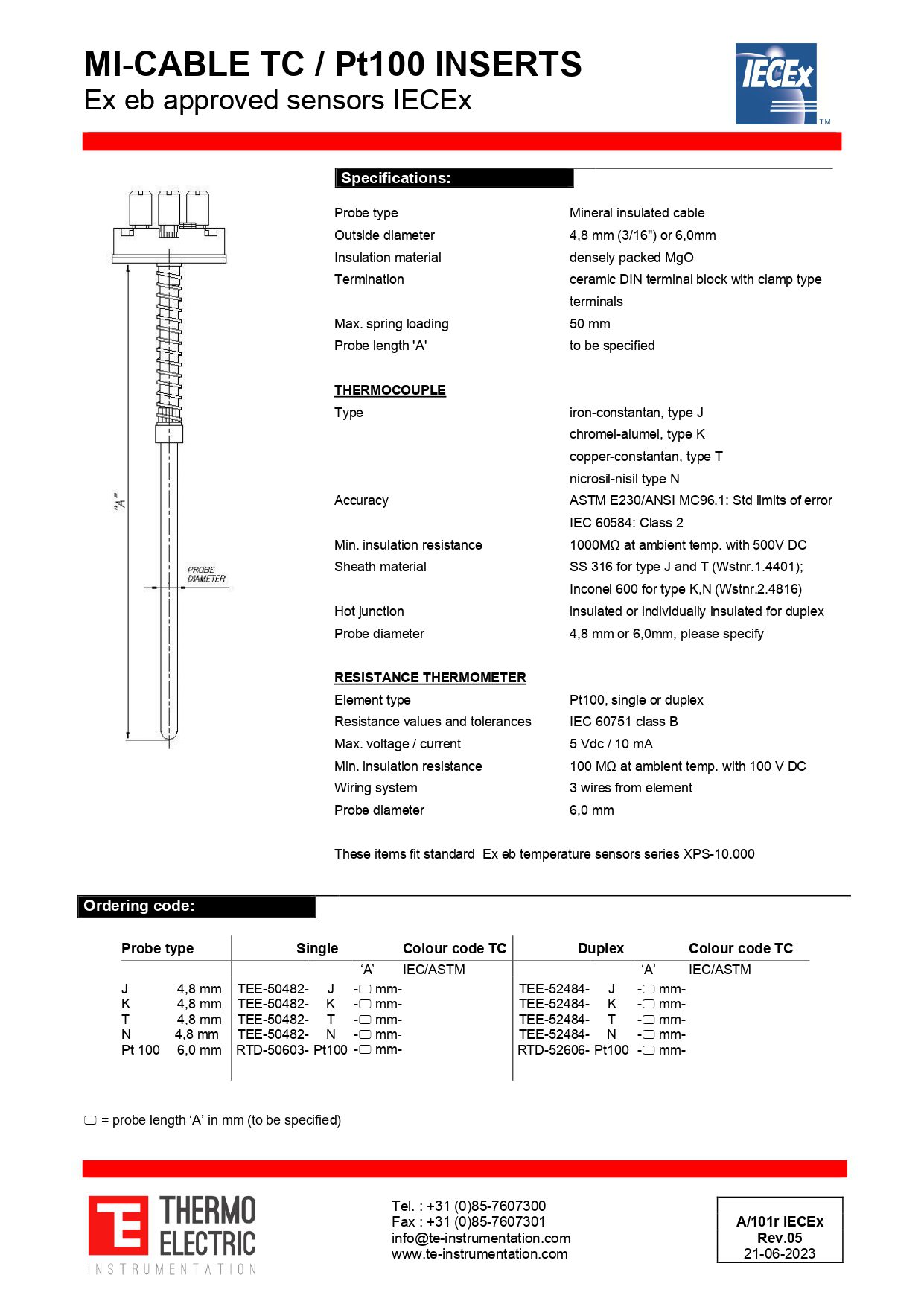

Specification Summary
  • Probe type Mineral insulated cable
  • Outside diameter 4.8 mm (3/16") or 6.0mm
  • Insulation material densely packed MgO
  • Termination ceramic DIN terminal block with clamp type; terminals
  • Max. spring loading 50 mm
  • Probe length 'A' to be specified
  • These items fit standard Ex eb temperature sensors series XPS-10.000
Thermocouple
  • Type iron-constantan, type J; chromel-alumel, type K; copper-constantan, type T; nicrosil-nisil type N
  • Accuracy ASTM E230/ANSI MC96.1: Std limits of error; IEC 60584: Class 2
  • Min. insulation resistance 1000 Mohm at ambient temp. with 500V DC
  • Sheath material SS 316 for type J and T (Wstnr.1.4401); Inconel 600 for type K,N (Wstnr.2.4816)
  • Hot junction insulated or individually insulated for duplex
  • Probe diameter 4.8 mm or 6.0mm, please specify
Resistance Thermometer
  • Element type Pt100, single or duplex
  • Resistance values and tolerances IEC 60751 class B
  • Max. voltage / current 5 Vdc / 10 mA
  • Min. insulation resistance 100 Mohm at ambient temp. with 100 V DC
  • Wiring system 3 wires from element
  • Probe diameter 6.0 mm
Approvals and Certification
  • IECEx, Ex eb, Ex e
