Temperature Sensor Assemblies Ex eb ATEX

Introducing our ATEX Ex eb Approved Hazardous Area Sensor, the ultimate solution for temperature measurement in hazardous environments. With its robust design and precision engineering, it’s perfectly suited for industrial applications requiring the utmost safety and accuracy.

Key Features:

• Material and Design: The sensor features a cast-aluminium connection head, ensuring durability and weather resistance.
• Extension: Nipple-union-nipple type made of stainless steel, with an approximate length of 160 mm (other lengths optional).
• Inserts: Comes with an approved thermocouple or resistance insert, offering versatility for different measurement needs.
• Thermowell Compatibility: Can accommodate any type of thermowell (to be specified by the customer).
• Approval: Certified with ‘eb’ increased safety under ATEX standards (Certificate number: 03ATEX2244 X).

Technical Specifications:

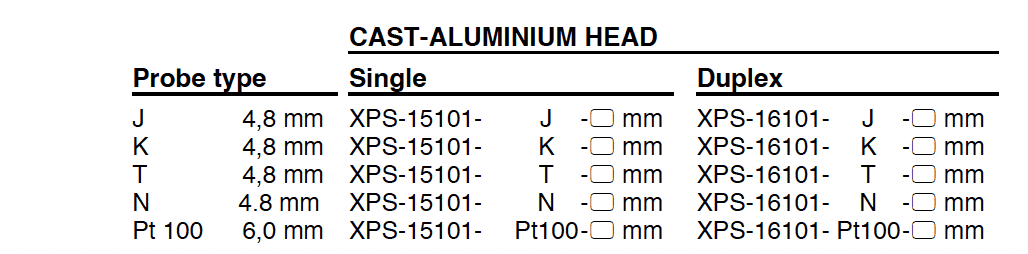

1. Probe Types: Available in single or duplex versions with options including types J, K, T, N, and Pt100.
2. Conduit Entry Thread: Standard 3/4″ NPT, with options for 1/2″ NPT or M20x15.
3. Process Connection: 1/2″ NPT male thread.
4. Protection Category: Ex eb IIC T6…T1 Gb.
5. Standards Compliance: Meets EN IEC 60079-0:2018 and EN 60079-7:2015+A1:2018 standards.

Applications:

Ideal for use in oil and gas, chemical processing, and other industries where explosive atmospheres may be present and precise temperature measurement is critical.

Datasheet

A/101 ATEX  Rev.02  30-06-2023
