Connection Head Assemblies with Nipple Union Nipple Extension

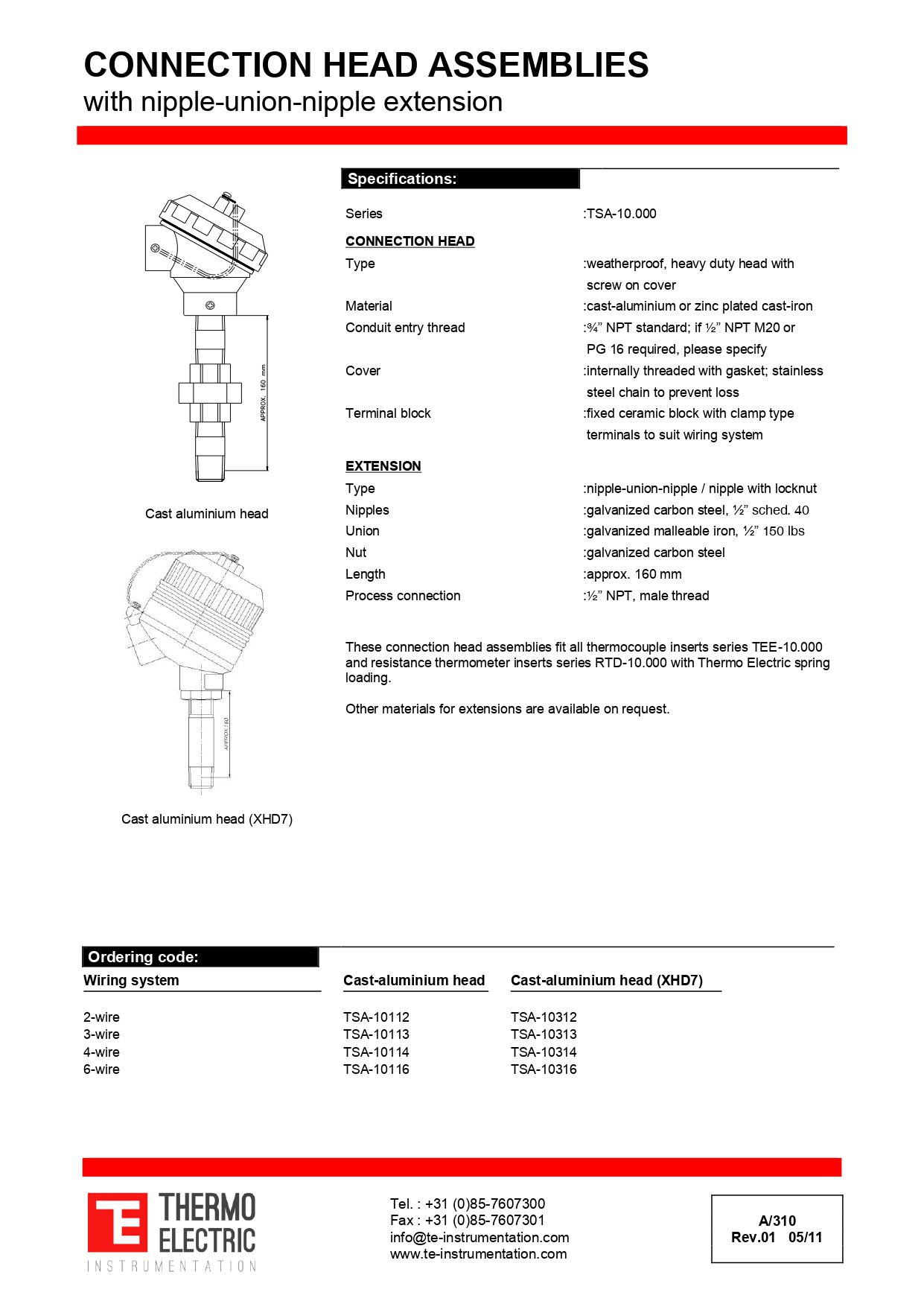

Connection Head Assemblies with Nipple Union Nipple Extension

Our Connection Head Assemblies with Nipple Union Nipple Extension are part of Thermo Electric’s industrial temperature sensor range. Product code A310 is retained for identification. Review the datasheet for construction, specification and application details.

Product code: A310

Ordering information: Quote product code A310 when enquiring so the correct datasheet variant can be referenced.

Download datasheet

Enquire about this product: Contact Thermo Electric with the product code, application details and any approval requirements so the team can confirm the correct specification.

SKU:A310-4423 Category: Tag:
Connection Head
  • Series: TSA-10.000.
  • Type: weatherproof, heavy duty head with screw-on cover.
  • Material: cast-aluminium or zinc plated cast-iron.
  • Conduit entry thread: NPT standard; specify if NPT, M20 or PG16 is required.
  • Cover: internally threaded with gasket; stainless steel chain to prevent loss.
  • Terminal block: fixed ceramic block with clamp type terminals to suit wiring system.
Extension
  • Type: nipple-union-nipple / nipple with locknut.
  • Nipples: galvanized carbon steel, 1/2 inch schedule 40.
  • Union: galvanized malleable iron, 1/2 inch 150 lbs.
  • Nut: galvanized carbon steel.
  • Length: approximately 160 mm.
  • Process connection: NPT male thread.
  • These connection head assemblies fit thermocouple inserts series TEE-10.000 and resistance thermometer inserts series RTD-10.000 with Thermo Electric spring loading.
