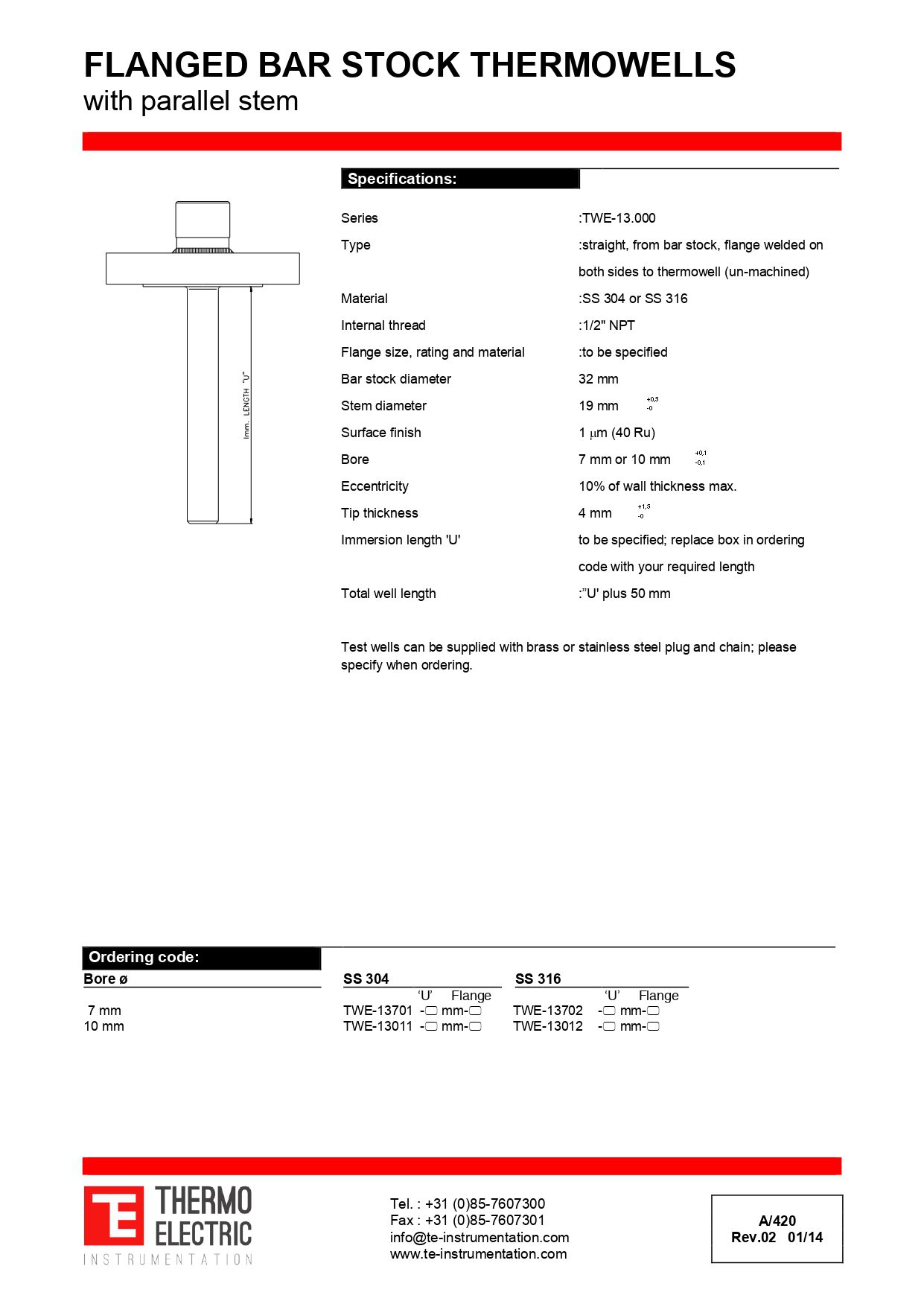

Specification Summary
- Series: TWE-13.000.
- Type: straight, from bar stock, flange welded on both sides to thermowell, un-machined.
- Material: SS 304 or SS 316.
- Internal thread: 1/2 inch NPT.
- Flange size, rating and material: to be specified.
- Bar stock diameter: 32 mm.
- Stem diameter: 19 mm.
- Bore: 7 mm or 10 mm.
- Surface finish: 1 micron (40 Ru).
- Eccentricity: 10% of wall thickness maximum.
- Tip thickness: 4 mm.
- Immersion length 'U': to be specified; replace box in ordering code with required length.
- Total well length: 'U' plus 50 mm.
- Test wells can be supplied with brass or stainless steel plug and chain; specify when ordering.
