MI-Cable Thermocouple Inserts with DIN Spring-loading

MI-Cable Thermocouple Inserts with DIN Spring-loading

Our MI-Cable Thermocouple Inserts with DIN Spring-loading are part of Thermo Electric’s miniature and mineral insulated temperature sensor range. Product code A215 is retained for identification. Review the datasheet for construction, insulation, lead wire and installation details.

Product code: A215

Ordering information: Quote product code A215 when enquiring so the correct datasheet variant can be referenced.

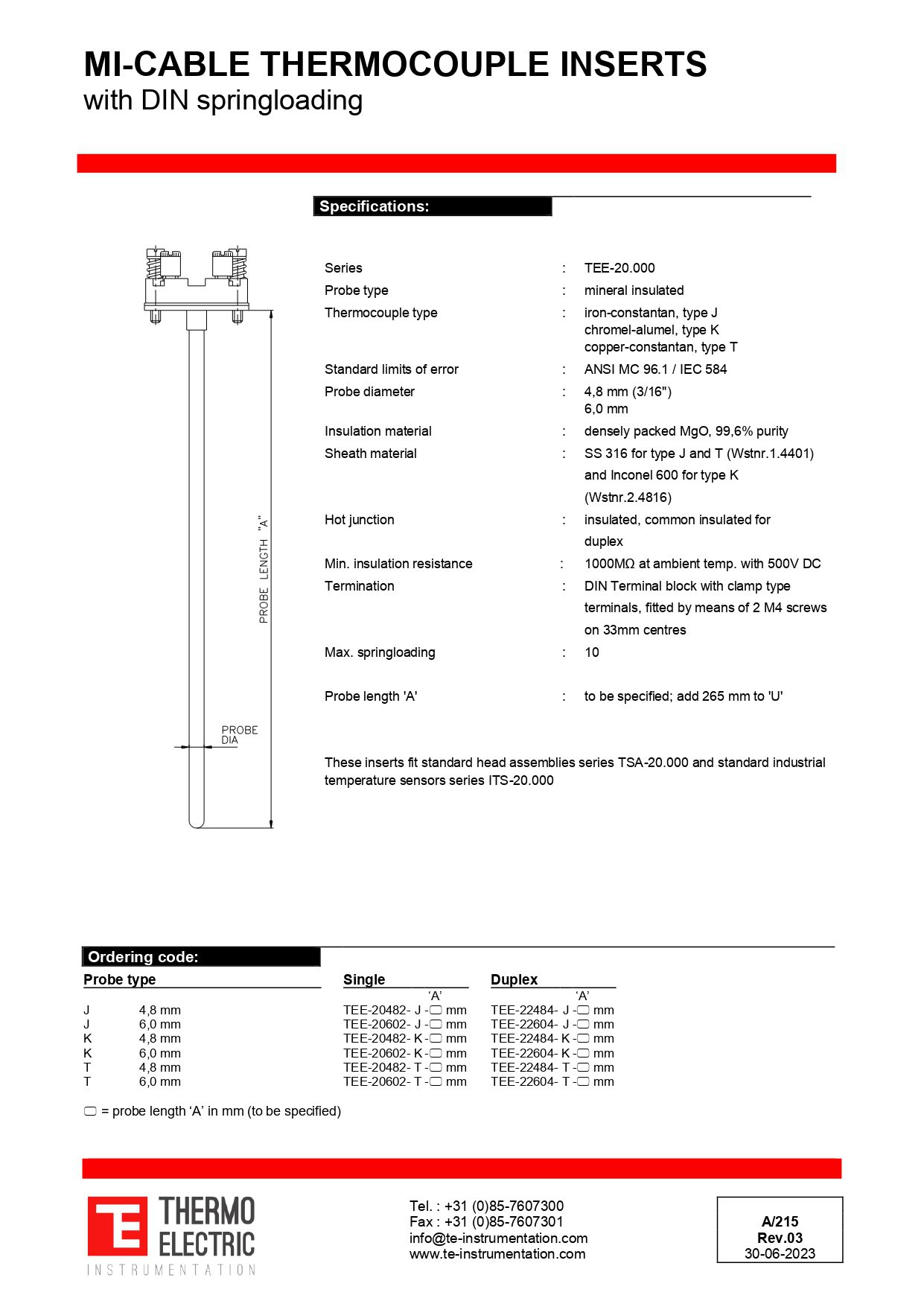

Download datasheet

Enquire about this product: Contact Thermo Electric with the product code, application details and any approval requirements so the team can confirm the correct specification.

SKU:A215-4387 Categories:, Tags:,
Specification Summary
  • Series: TEE-20.000.
  • Probe type: mineral insulated.
  • Thermocouple types: iron-constantan type J, chromel-alumel type K and copper-constantan type T.
  • Standard limits of error: ANSI MC 96.1 / IEC 584.
  • Probe diameter: 4.8 mm (3/16 inch) or 6.0 mm.
  • Insulation material: densely packed MgO, 99.6% purity.
  • Sheath material: SS 316 for type J and T (Wstnr.1.4401); Inconel 600 for type K (Wstnr.2.4816).
  • Hot junction: insulated, common insulated for duplex.
  • Minimum insulation resistance: 1000 Mohm at ambient temperature with 500 V DC.
  • Termination: ceramic DIN terminal block with clamp type terminals.
  • Max. springloading: 10 mm.
  • Probe length A: to be specified; add 265 mm to U.
