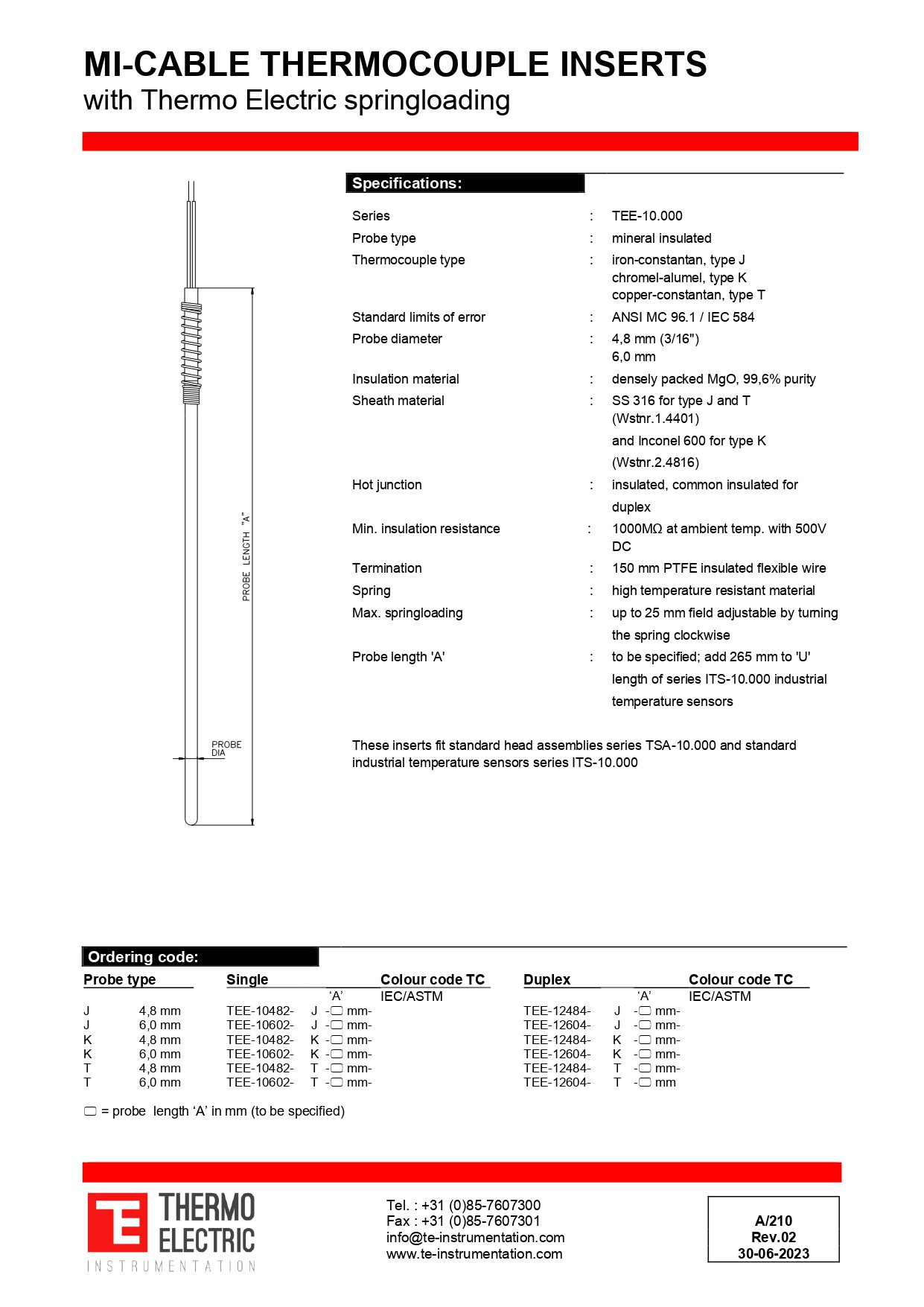

Specification Summary
- Series: TEE-10.000.
- Probe type: mineral insulated.
- Thermocouple types: iron-constantan type J, chromel-alumel type K and copper-constantan type T.
- Standard limits of error: ANSI MC 96.1 / IEC 584.
- Probe diameter: 4.8 mm (3/16 inch) or 6.0 mm.
- Insulation material: densely packed MgO, 99.6% purity.
- Sheath material: SS 316 for type J and T (Wstnr.1.4401); Inconel 600 for type K (Wstnr.2.4816).
- Hot junction: insulated, common insulated for duplex.
- Minimum insulation resistance: 1000 Mohm at ambient temperature with 500 V DC.
- Termination: 150 mm PTFE insulated flexible wire.
- Spring: high temperature resistant material.
- Max. springloading: up to 25 mm, field adjustable by turning the spring clockwise.
- Probe length A: to be specified; add 265 mm to U length of series ITS-10.000 industrial temperature sensors.
