MI-Cable Thermocouple Probe with Light-Weight Connection Head

MI-Cable Thermocouple Probe with Light-Weight Connection Head

Our MI-Cable Thermocouple Probe with Light-Weight Connection Head is part of Thermo Electric’s miniature and mineral insulated temperature sensor range. Product code D210 is retained for identification. Review the datasheet for construction, insulation, lead wire and installation details.

Product code: D210

Ordering information: Quote product code D210 when enquiring so the correct datasheet variant can be referenced.

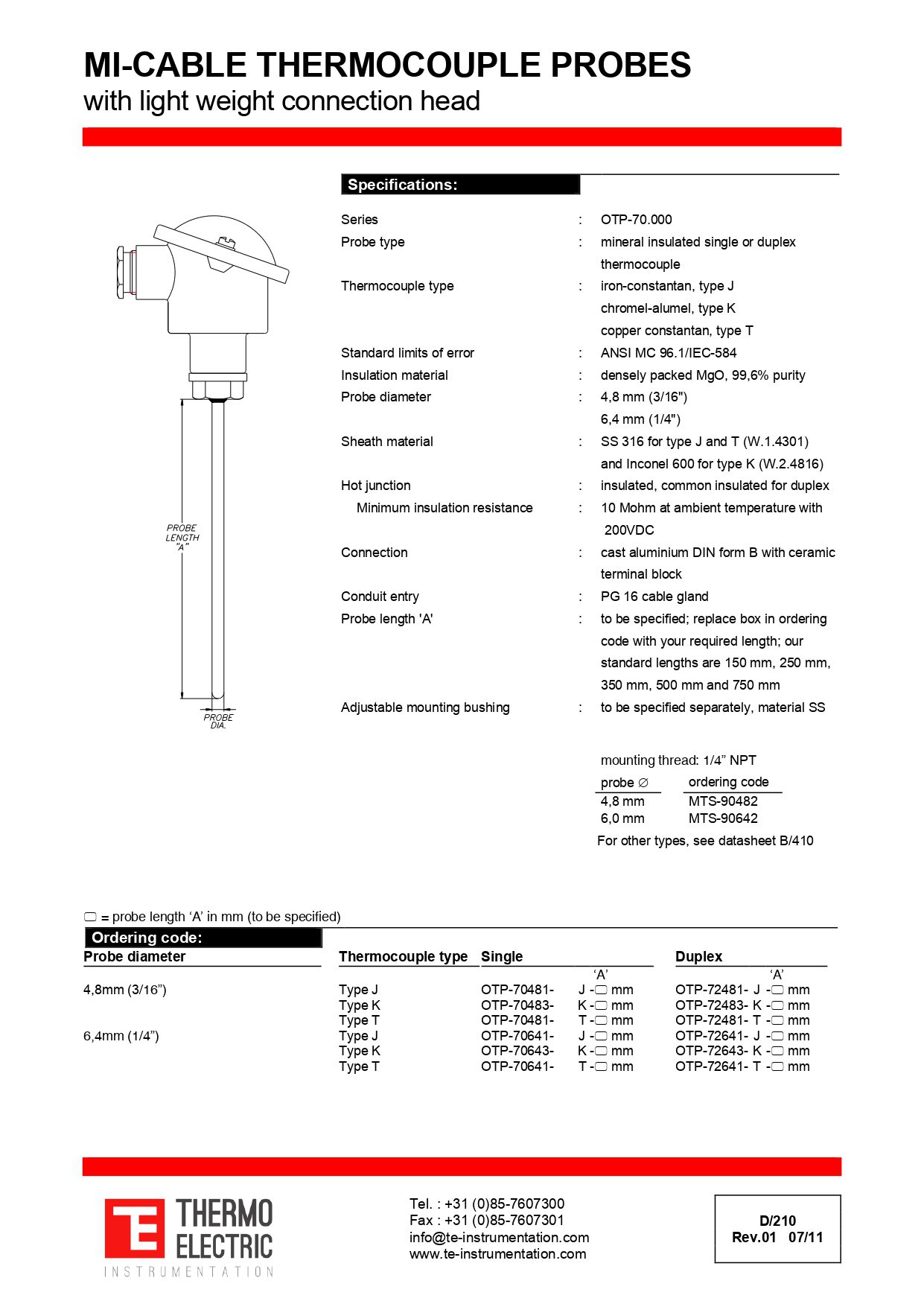

Download datasheet

Enquire about this product: Contact Thermo Electric with the product code, application details and any approval requirements so the team can confirm the correct specification.

SKU:D210-4544 Categories:, Tag:
Specification Summary
  • Series: OTP-70.000
  • Probe type: mineral insulated single or duplex
  • Thermocouple types: iron-constantan type J, chromel-alumel type K and copper-constantan type T
  • Accuracy: ASTM E230/ANSI MC96.1; IEC 60584: Class 2
  • Insulation material: densely packed MgO, 99.6% purity
  • Probe diameter: 4,8 mm (3/16")
  • Sheath material: SS 316 for type J and T; Inconel 600 for type K
  • Hot junction: insulated, common insulated for duplex
