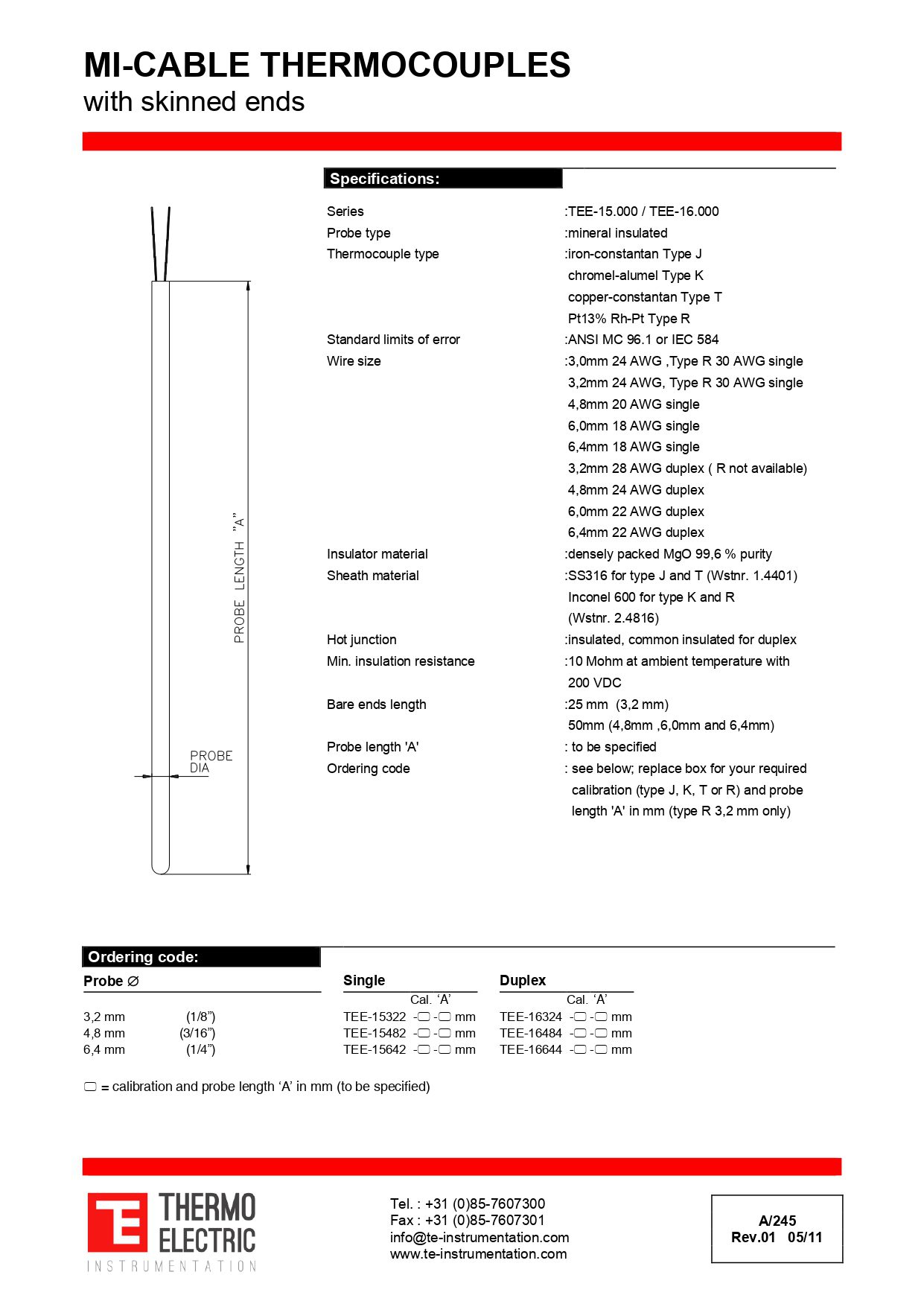

Specification Summary
- Series: TEE-15.000 / TEE-16.000.
- Probe type: mineral insulated.
- Thermocouple types: iron-constantan type J, chromel-alumel type K, copper-constantan type T and Pt13%Rh-Pt type R.
- Standard limits of error: ANSI MC 96.1 or IEC 584.
- Wire sizes: 3.0 mm 24 AWG, 3.2 mm 24 AWG, 4.8 mm 20 AWG, 6.0 mm 18 AWG and 6.4 mm 18 AWG for single elements; duplex options shown in datasheet.
- Insulator material: densely packed MgO, 99.6% purity.
- Sheath material: SS316 for type J and T; Inconel 600 for type K and R.
- Hot junction: insulated, common insulated for duplex.
- Minimum insulation resistance: 10 Mohm at ambient temperature with 200 V DC.
- Bare ends length: 25 mm for 3.2 mm; 50 mm for 4.8 mm, 6.0 mm and 6.4 mm.
- Probe length 'A': to be specified.
