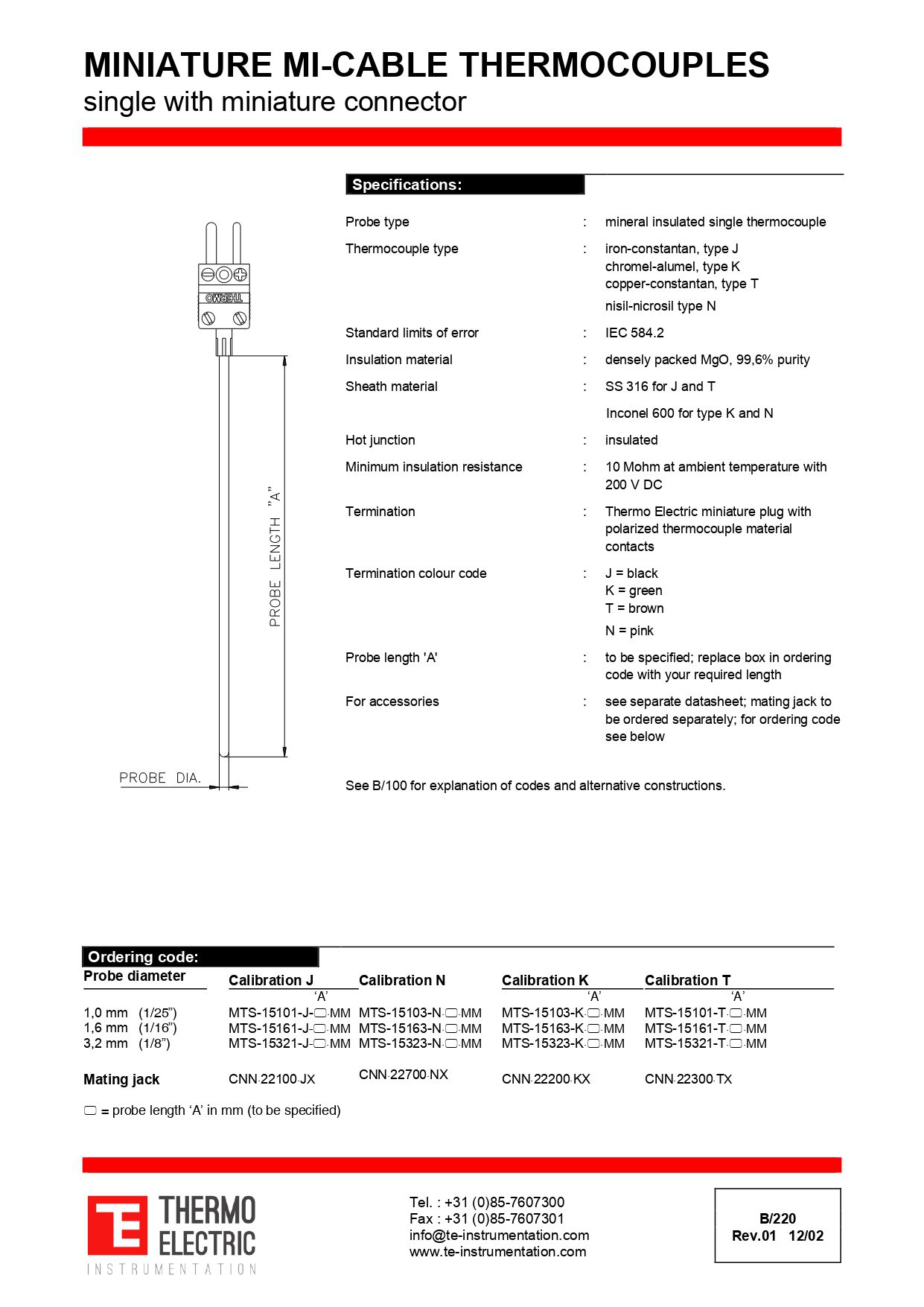

Specification Summary
- Probe type: mineral insulated single thermocouple.
- Probe diameter: 1.0 mm to 3.2 mm.
- Thermocouple types: iron-constantan type J, chromel-alumel type K, copper-constantan type T, and nisil-nicrosil type N.
- Tolerance: ASTM E230/ANSI MC96.1 standard tolerance; IEC 60584 Class 2.
- Insulation material: densely packed MgO.
- Sheath material: SS 321 for type J and T; Inconel 600 for type K and N.
- Hot junction: insulated.
- Minimum insulation resistance: 10 Mohm at ambient temperature with 200 V DC.
- Termination: Thermo Electric miniature plug with polarized thermocouple material contacts.
- Termination colour code: J black, K green/yellow, T brown/blue according to standard shown in the datasheet.
- Probe length 'A': to be specified; mating jack to be ordered separately.
- See B/100 for explanation of codes and alternative constructions.
