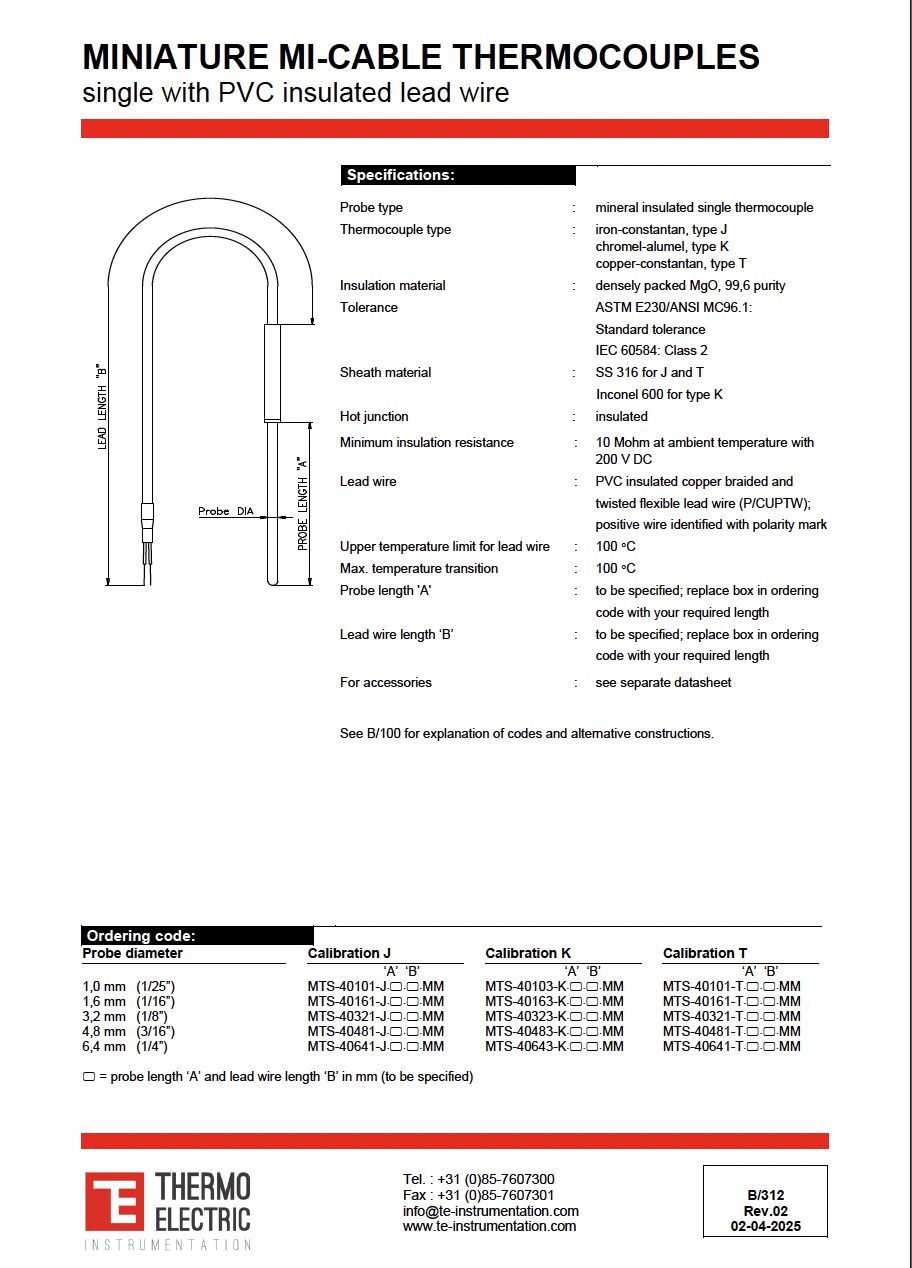

Specification Summary
- Probe type: mineral insulated single thermocouple.
- Thermocouple types: iron-constantan type J, chromel-alumel type K, and copper-constantan type T.
- Insulation material: densely packed MgO, 99.6% purity.
- Tolerance: ASTM E230/ANSI MC96.1 standard tolerance; IEC 60584 Class 2.
- Sheath material: SS 316 for type J and T; Inconel 600 for type K.
- Hot junction: insulated.
- Minimum insulation resistance: 10 Mohm at ambient temperature with 200 V DC.
- Lead wire: PVC insulated copper braided and twisted flexible lead wire (P/CUPTW); positive wire identified with polarity mark.
- Upper temperature limit for lead wire: 100 °C.
- Max. temperature transition: 100 °C.
- Probe length ‘A’ and lead wire length ‘B’: to be specified; replace box in ordering code with required length.
- See B/100 for explanation of codes and alternative constructions.
