Miniature Resistance Temperature Detector

Miniature Resistance Temperature Detector

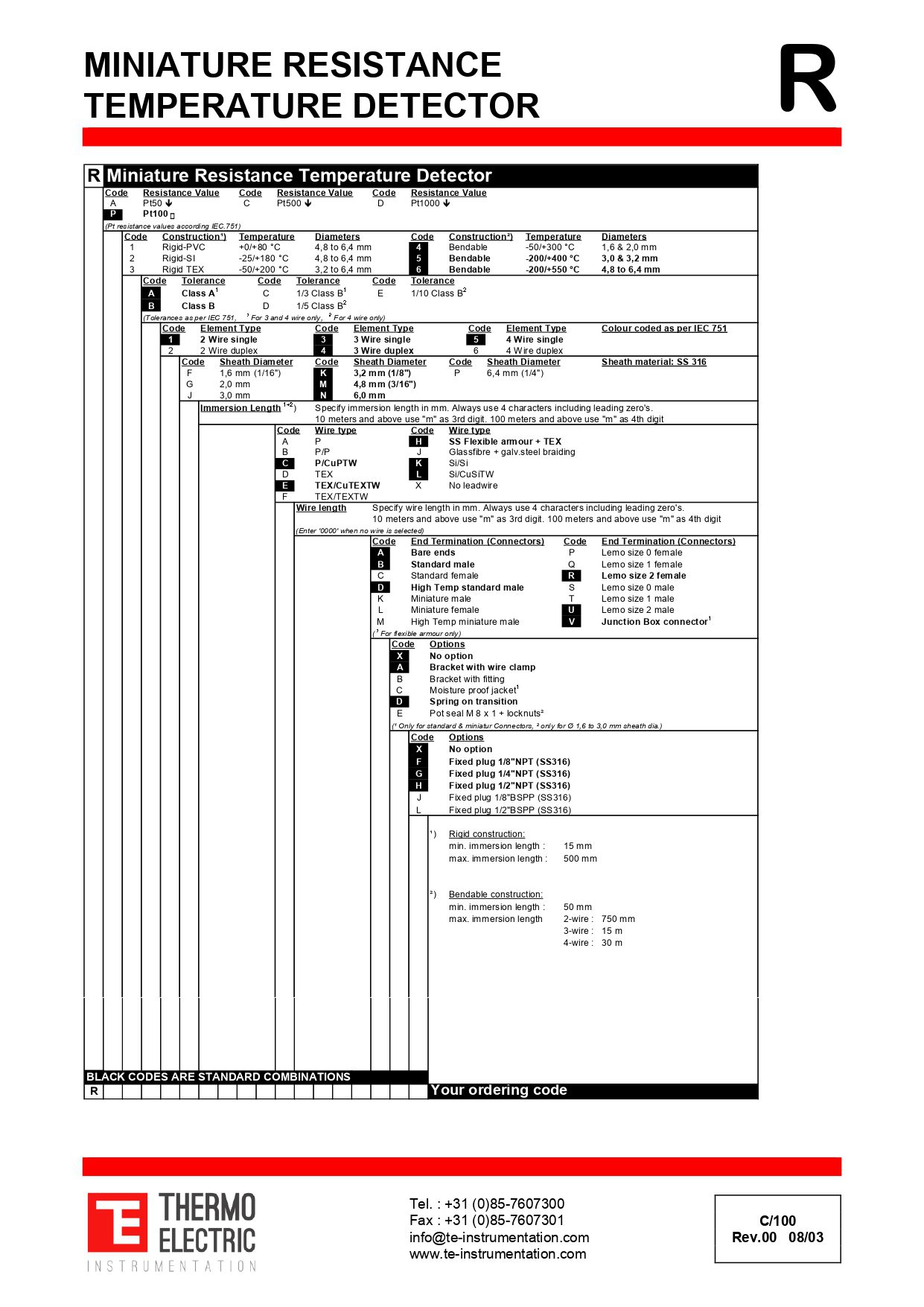

Our Miniature Resistance Temperature Detector is part of Thermo Electric’s miniature and mineral insulated temperature sensor range. Product code C100 is retained for identification. Review the datasheet for construction, insulation, lead wire and installation details.

Product code: C100

Ordering information: Quote product code C100 when enquiring so the correct datasheet variant can be referenced.

Download datasheet

Enquire about this product: Contact Thermo Electric with the product code, application details and any approval requirements so the team can confirm the correct specification.

SKU:C100-4507 Categories:, Tag:
Resistance Values and Standards
  • Miniature resistance temperature detector.
  • Resistance values: Pt50, Pt100, Pt500 and Pt1000.
  • Pt resistance values according to IEC 60751.
  • Colour coding according to IEC 60751.
Construction Options
  • Rigid PVC construction: 0 to +80 °C, 4.8 to 6.4 mm diameter.
  • Rigid SI construction: -25 to +180 °C, 4.8 to 6.4 mm diameter.
  • Rigid TEX construction: -50 to +200 °C, 3.2 to 6.4 mm diameter.
  • Bendable constructions cover -50 to +300 °C, -200 to +400 °C and -200 to +550 °C depending on selected diameter.
Tolerance and Element Type
  • Tolerance options: Class A, Class B, 1/3 Class B, 1/5 Class B and 1/10 Class B.
  • Tolerances as per IEC 60751.
  • Element types: 2-wire single or duplex, 3-wire single or duplex, and 4-wire single or duplex.
  • Some tolerance options are restricted by wire configuration; review the datasheet ordering table before enquiry.
Sheath, Lead Wire and Termination
  • Sheath material: SS 316.
  • Sheath diameters: 1.6 mm, 2.0 mm, 3.0 mm, 3.2 mm, 4.8 mm, 6.0 mm and 6.4 mm.
  • Wire type options include P, P/P, P/CuPTW, TEX, TEX/CuTEXTW, TEX/TEXTW, SS flexible armour + TEX, glass fibre + galvanised steel braiding, Si/Si, Si/CuSiTW or no leadwire.
  • End termination options include bare ends, standard or miniature connectors, high-temperature connectors, Lemo connectors and junction box connector for flexible armour.
  • Options include no option, bracket with wire clamp, bracket with fitting, moisture proof jacket, spring on transition and pot seal M8 x 1 with locknuts.
