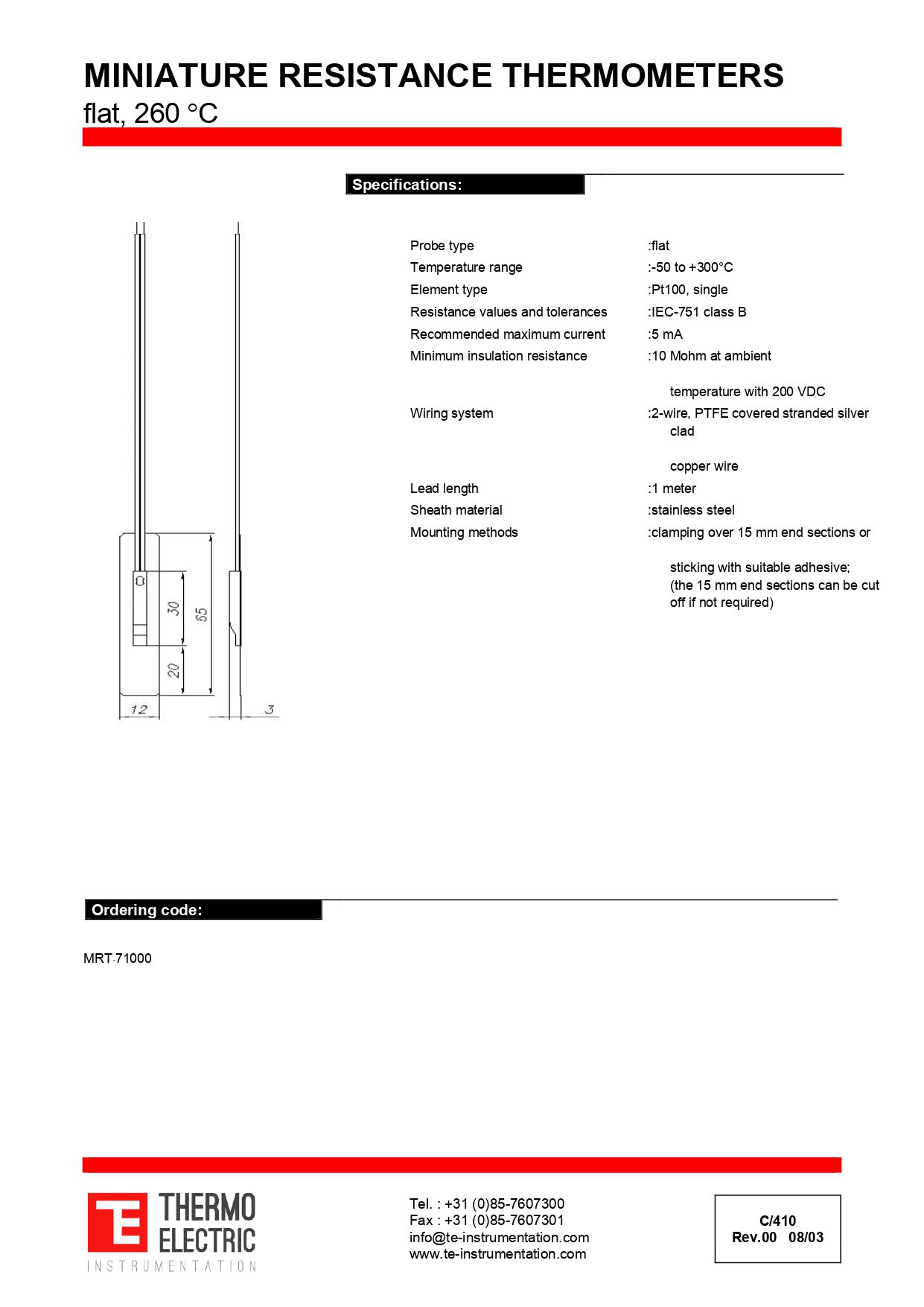

Miniature Resistance Thermometer Flat 260C

Miniature Resistance Thermometer Flat 260C

Our Miniature Resistance Thermometer Flat 260C is part of Thermo Electric’s miniature and mineral insulated temperature sensor range. Product code C410 is retained for identification. Review the datasheet for construction, insulation, lead wire and installation details.

Product code: C410

Ordering information: Quote product code C410 when enquiring so the correct datasheet variant can be referenced.

Download datasheet

Enquire about this product: Contact Thermo Electric with the product code, application details and any approval requirements so the team can confirm the correct specification.

SKU:C410-4531 Categories:, Tag:
Specification Summary
  • Probe type: flat
  • Temperature range: -50 to +300°C
  • Element type: Pt100, single
  • Resistance values and tolerances: IEC 60751 class B
  • Recommended maximum current: 5 mA
  • Minimum insulation resistance: 10 Mohm at ambient temperature
  • Wiring system: 2-wire, PTFE covered stranded
  • Lead length: 1 meter
  • Sheath material: stainless steel
  • Mounting methods: clamping over 15 mm end
