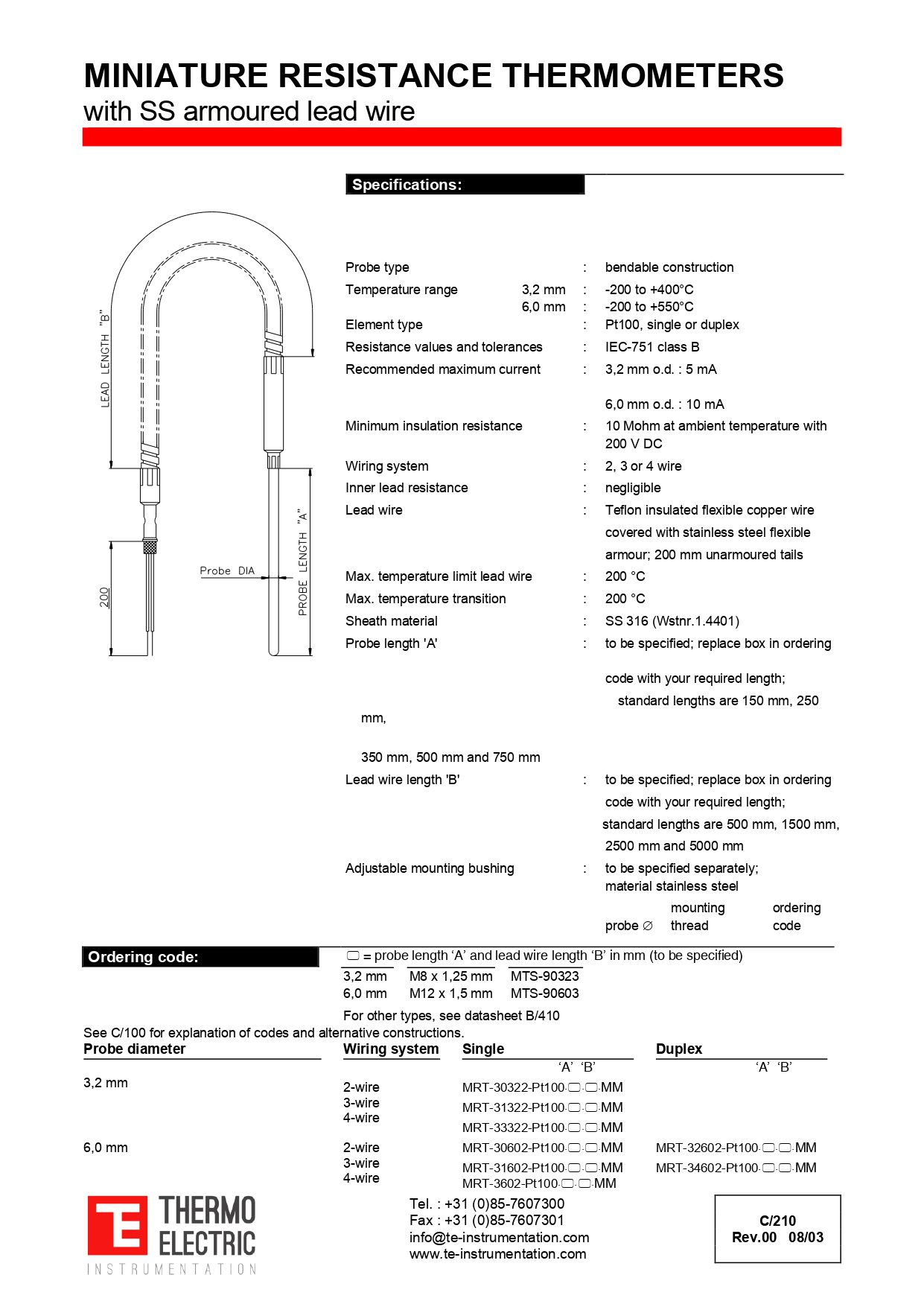

Specification Summary
- Probe type: bendable construction.
- Temperature range 3.2 mm: -200 to +400 °C; 6.0 mm: -200 to +550 °C.
- Element type: Pt100, single or duplex.
- Resistance values and tolerances: IEC 60751 class B.
- Recommended maximum current: 3.2 mm o.d. 5 mA; 6.0 mm o.d. 10 mA.
- Minimum insulation resistance: 10 Mohm at ambient temperature with 200 V DC.
- Wiring system: 2, 3 or 4 wire.
- Inner lead resistance: negligible.
- Lead wire: Teflon insulated flexible copper wire covered with stainless steel flexible armour; 200 mm unarmoured tails.
- Max. temperature limit lead wire: 200 °C.
- Max. temperature transition: 200 °C.
- Sheath material: SS 316 (Wstnr.1.4401).
- Probe length 'A': to be specified; standard lengths are 150 mm, 250 mm, 350 mm, 500 mm and 750 mm.
- Adjustable mounting bushing: to be specified separately; material stainless steel.
- For other types, see datasheet B/410; see C/100 for explanation of codes and alternative constructions.
