Mounting Adapters for Spring-Loaded Sensors

Mounting Adapters for Spring-Loaded Sensors

Our Mounting Adapters for Spring-Loaded Sensors are part of Thermo Electric’s industrial temperature sensor range. Product code B530 is retained for identification. Review the datasheet for construction, specification and application details.

Product code: B530

Ordering information: Quote product code B530 when enquiring so the correct datasheet variant can be referenced.

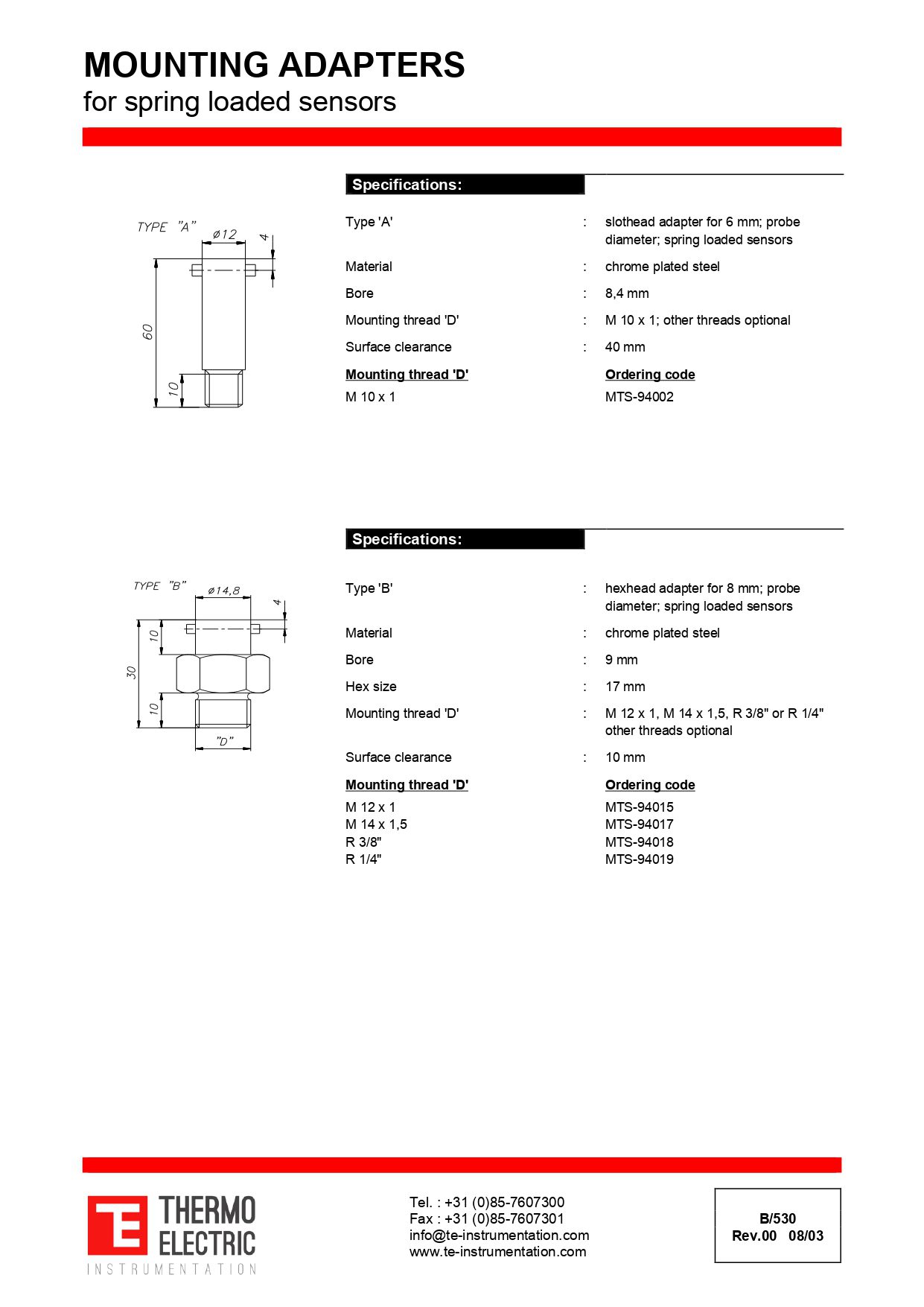

Download datasheet

Enquire about this product: Contact Thermo Electric with the product code, application details and any approval requirements so the team can confirm the correct specification.

SKU:B530-4503 Category: Tag:
Type A Slothead Adapter
  • Slothead adapter for 6 mm probe diameter spring loaded sensors.
  • Material: chrome plated steel.
  • Bore: 8.4 mm.
  • Mounting thread ‘D’: M 10 x 1; other threads optional.
  • Surface clearance: 40 mm.
  • Ordering code: MTS-94002.
Type B Hexhead Adapter
  • Hexhead adapter for 8 mm probe diameter spring loaded sensors.
  • Material: chrome plated steel.
  • Bore: 9 mm.
  • Hex size: 17 mm.
  • Mounting thread ‘D’: M 12 x 1, M 14 x 1.5, R 3/8 inch or R 1/4 inch; other threads optional.
  • Surface clearance: 10 mm.
  • Ordering codes: MTS-94015, MTS-94017, MTS-94018 and MTS-94019.
