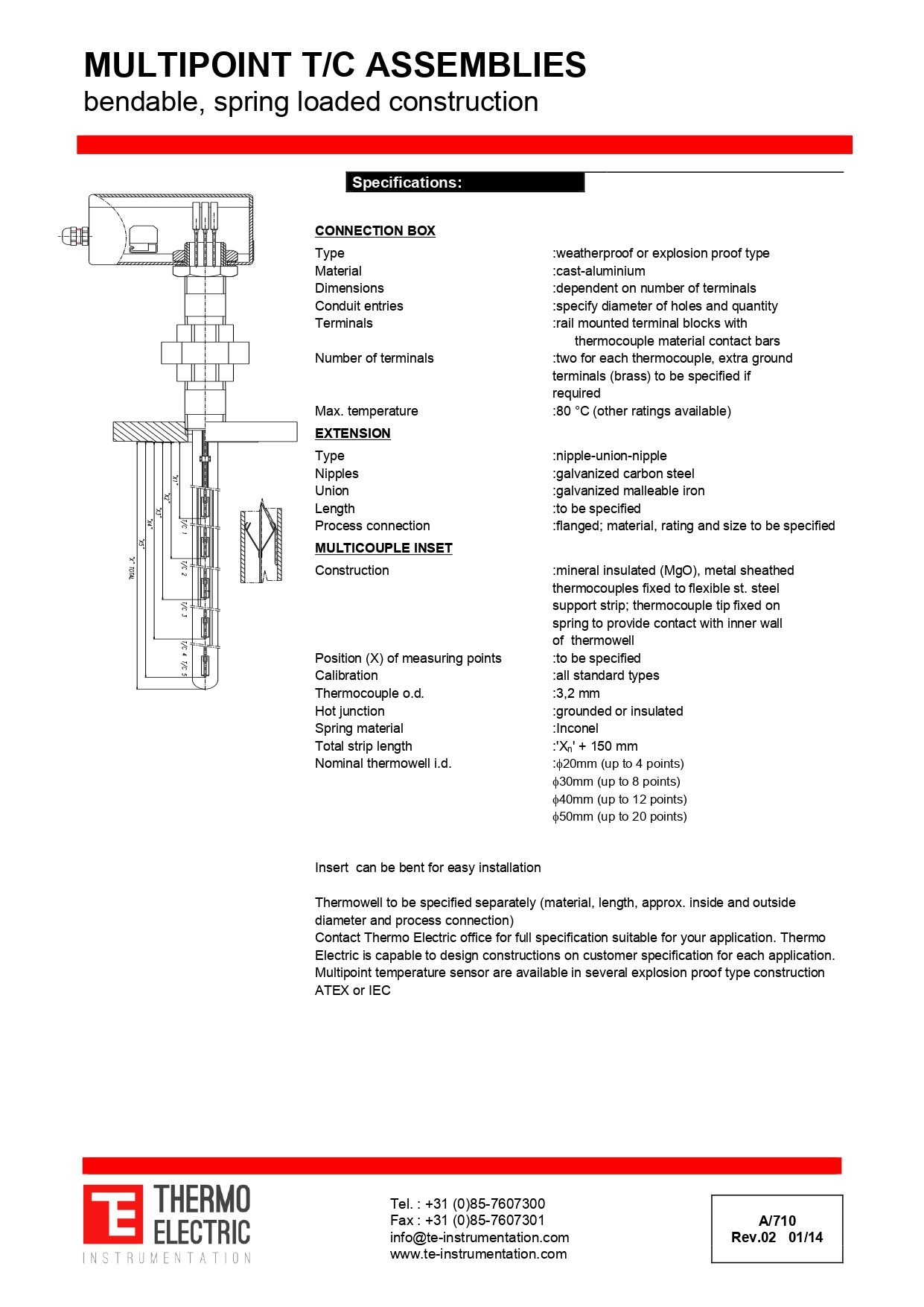

Multi-point T/C Assemblies Bendable Spring-Loaded Construction - ATEX

Multi-point T/C Assemblies Bendable Spring-Loaded Construction – ATEX

Our Multi-point T/C Assemblies Bendable Spring-Loaded Construction – ATEX are part of Thermo Electric’s hazardous-area temperature sensing range. Product code A710 is retained for identification. The datasheet should be reviewed against the required approval, process conditions and installation details.

Product code: A710

Ordering information: Quote product code A710 when enquiring so the correct datasheet variant can be referenced.

Download datasheet

Enquire about this product: Contact Thermo Electric with the product code, application details and any approval requirements so the team can confirm the correct specification.

SKU:A710-4448 Categories:, Tags:,
Connection Box
  • Type: weatherproof or explosion proof type.
  • Material: cast-aluminium.
  • Dimensions: dependent on number of terminals.
  • Conduit entries: specify diameter of holes and quantity.
  • Terminals: rail mounted terminal blocks with thermocouple material contact bars.
  • Number of terminals: two for each thermocouple; extra ground terminals in brass to be specified if required.
  • Max. temperature: 80 °C; other ratings available.
Extension
  • Type: nipple-union-nipple.
  • Nipples: galvanized carbon steel.
  • Union: galvanized malleable iron.
  • Length: to be specified.
  • Process connection: flanged; material, rating and size to be specified.
Multicouple Insert
  • Construction: mineral insulated (MgO), metal sheathed thermocouples fixed to flexible stainless steel support strip.
  • Thermocouple tip fixed on spring to provide contact with inner wall of thermowell.
  • Position (X) of measuring points: to be specified.
  • Calibration: all standard types.
  • Thermocouple outside diameter: 3.2 mm.
  • Hot junction: grounded or insulated.
  • Spring material: Inconel.
  • Total strip length: 'Xn' + 150 mm.
  • Nominal thermowell inside diameter: 20 mm up to 4 points, 30 mm up to 8 points, 40 mm up to 12 points, 50 mm up to 20 points.
Approvals and Certification
  • ATEX or IEC explosion proof type construction available.
  • Thermowell to be specified separately, including material, length, approximate inside and outside diameter and process connection.
  • Contact Thermo Electric for a full specification suitable for the application.
