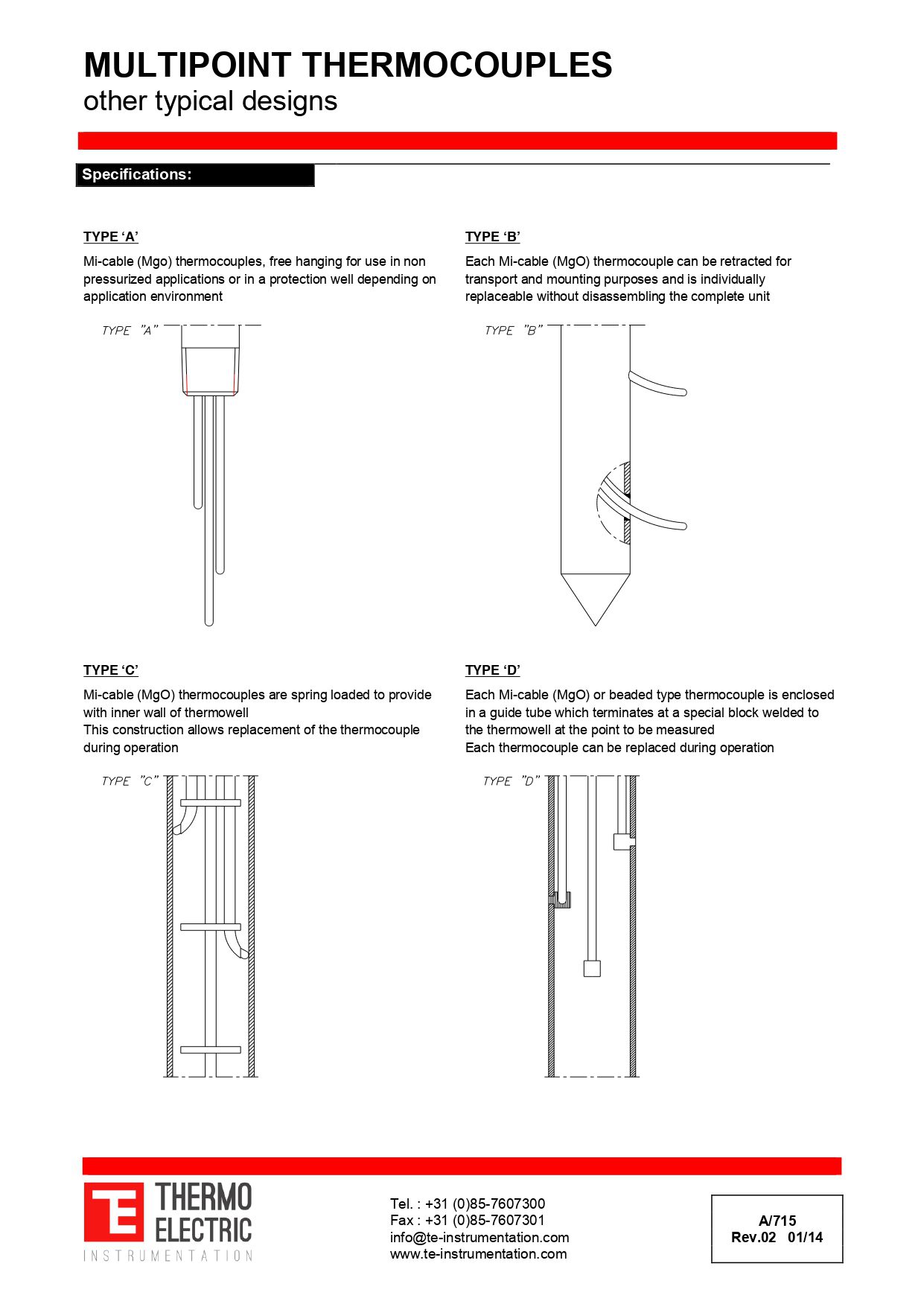

Multipoint Thermocouples Other Typical Designs - Construction Variant

Multipoint Thermocouples Other Typical Designs – Construction Variant

Our Multipoint Thermocouples are part of Thermo Electric’s industrial temperature sensor range. Product code A715 is retained for identification. Review the datasheet for construction, specification and application details.

Product code: A715

Ordering information: Quote product code A715 when enquiring so the correct datasheet variant can be referenced.

Download datasheet

Enquire about this product: Contact Thermo Electric with the product code, application details and any approval requirements so the team can confirm the correct specification.

SKU:A715-4455 Category: Tag:
Retractable Free-Hanging Construction
  • Mi-cable (MgO) thermocouples, free hanging for use in non-pressurized applications or in a protection well depending on application environment.
  • Each Mi-cable (MgO) thermocouple can be retracted for transport and mounting purposes.
  • Each thermocouple is individually replaceable without disassembling the complete unit.
Spring-Loaded Guide Tube Construction
  • Mi-cable (MgO) thermocouples are spring loaded to provide contact with the inner wall of the thermowell.
  • This construction allows replacement of the thermocouple during operation.
  • Each Mi-cable (MgO) or beaded type thermocouple is enclosed in a guide tube terminating at a special block welded to the thermowell at the point to be measured.
