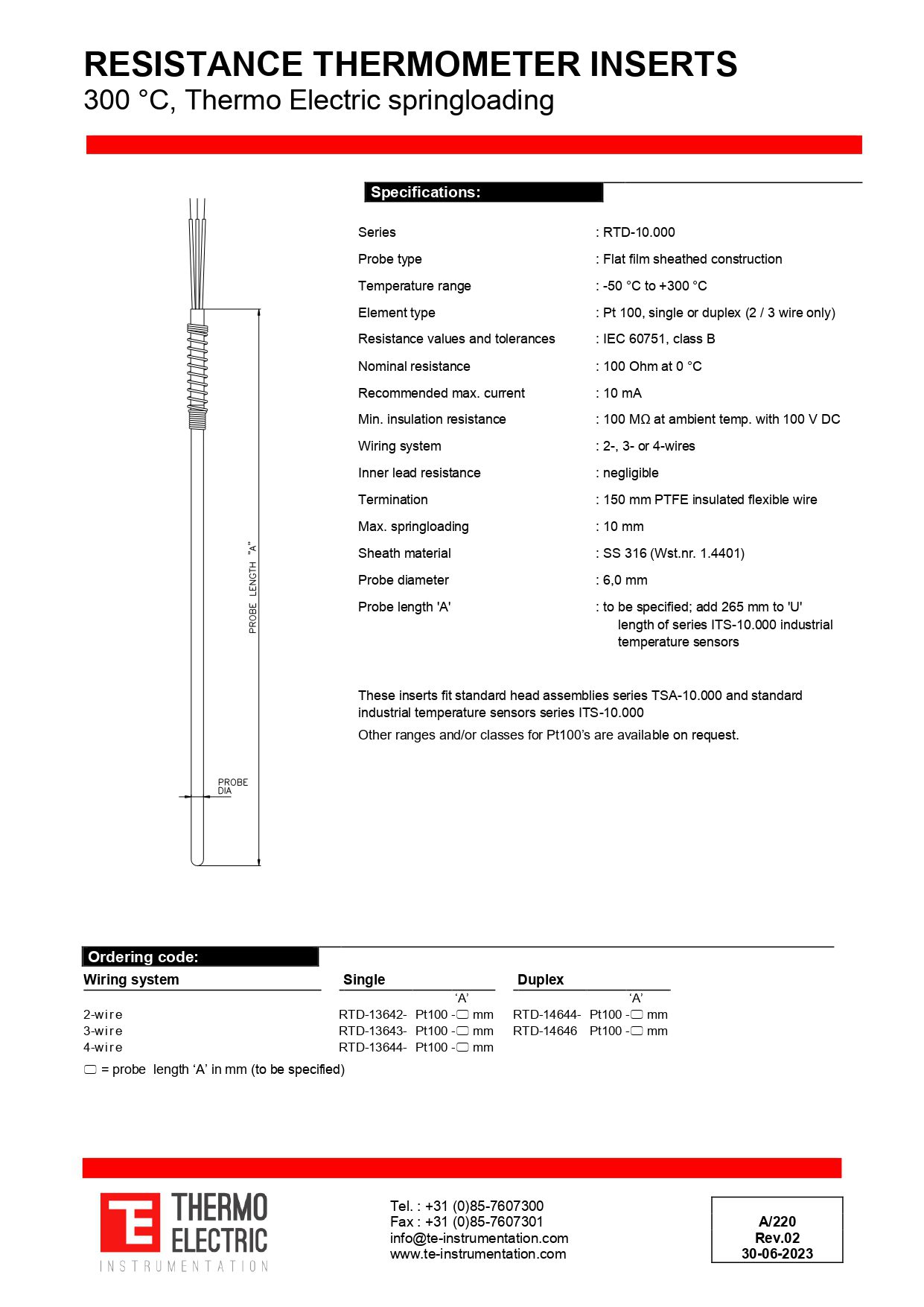

Specification Summary
- Series: RTD-10.000
- Probe type: Flat film sheathed construction
- Temperature range: -50 °C to +300 °C
- Element type: Pt 100, single or duplex (2 / 3 wire only)
- Resistance values and tolerances: IEC 60751, class B
- Nominal resistance: 100 Ohm at 0 °C
- Recommended max. current: 10 mA
- Min. insulation resistance: 100 MΩ at ambient temp. with 100 V DC
- Wiring system: 2-, 3- or 4-wires
- Inner lead resistance: negligible
