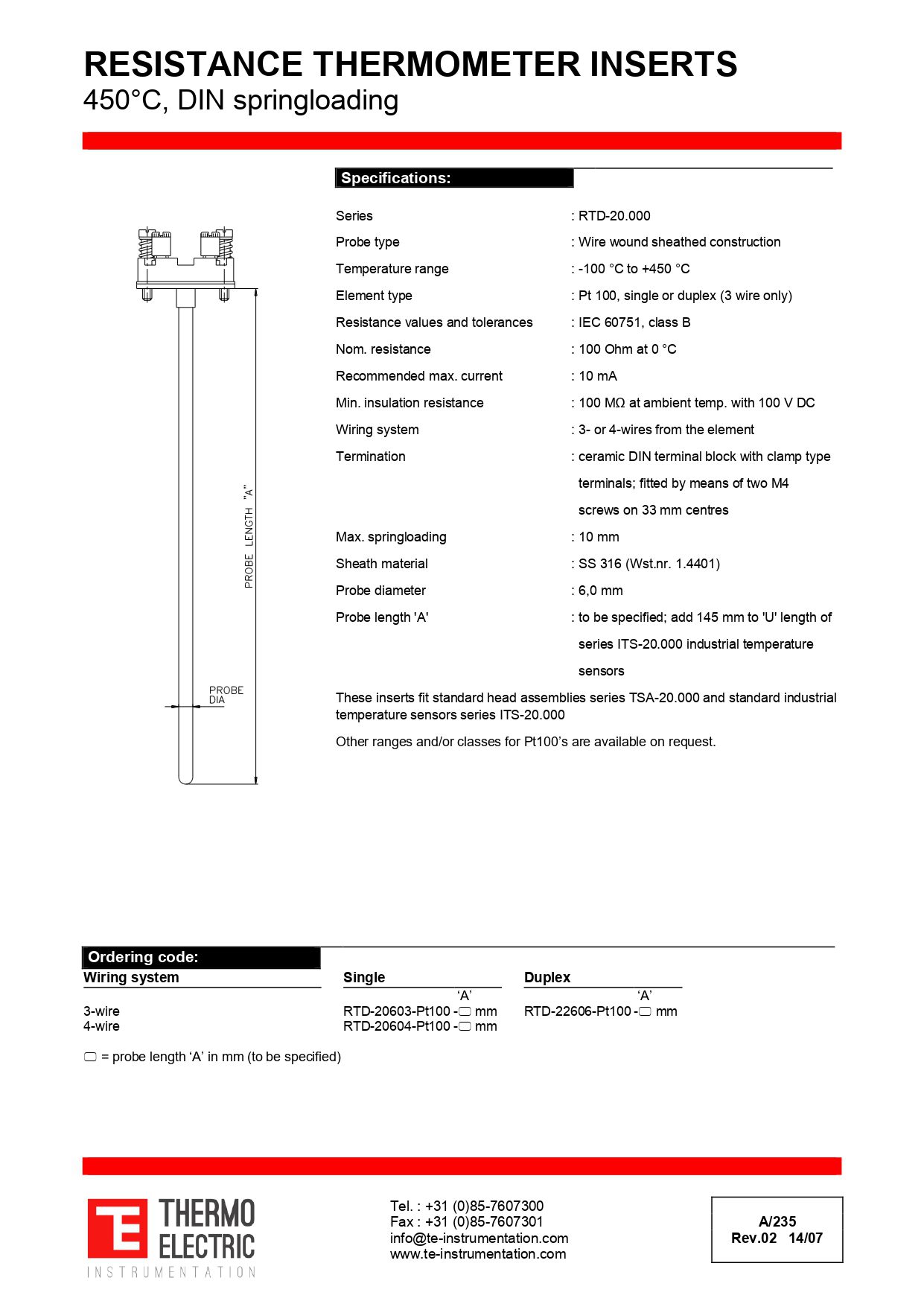

Specification Summary
- Series: RTD-20.000
- Probe type: Wire wound sheathed construction
- Temperature range: -100 °C to +450 °C
- Element type: Pt 100, single or duplex (3 wire only)
- Resistance values and tolerances: IEC 60751, class B
- Nom. resistance: 100 Ohm at 0 °C
- Recommended max. current: 10 mA
- Min. insulation resistance: 100 MΩ at ambient temp. with 100 V DC
- Wiring system: 3- or 4-wires from the element
- Termination: ceramic DIN terminal block with clamp type
