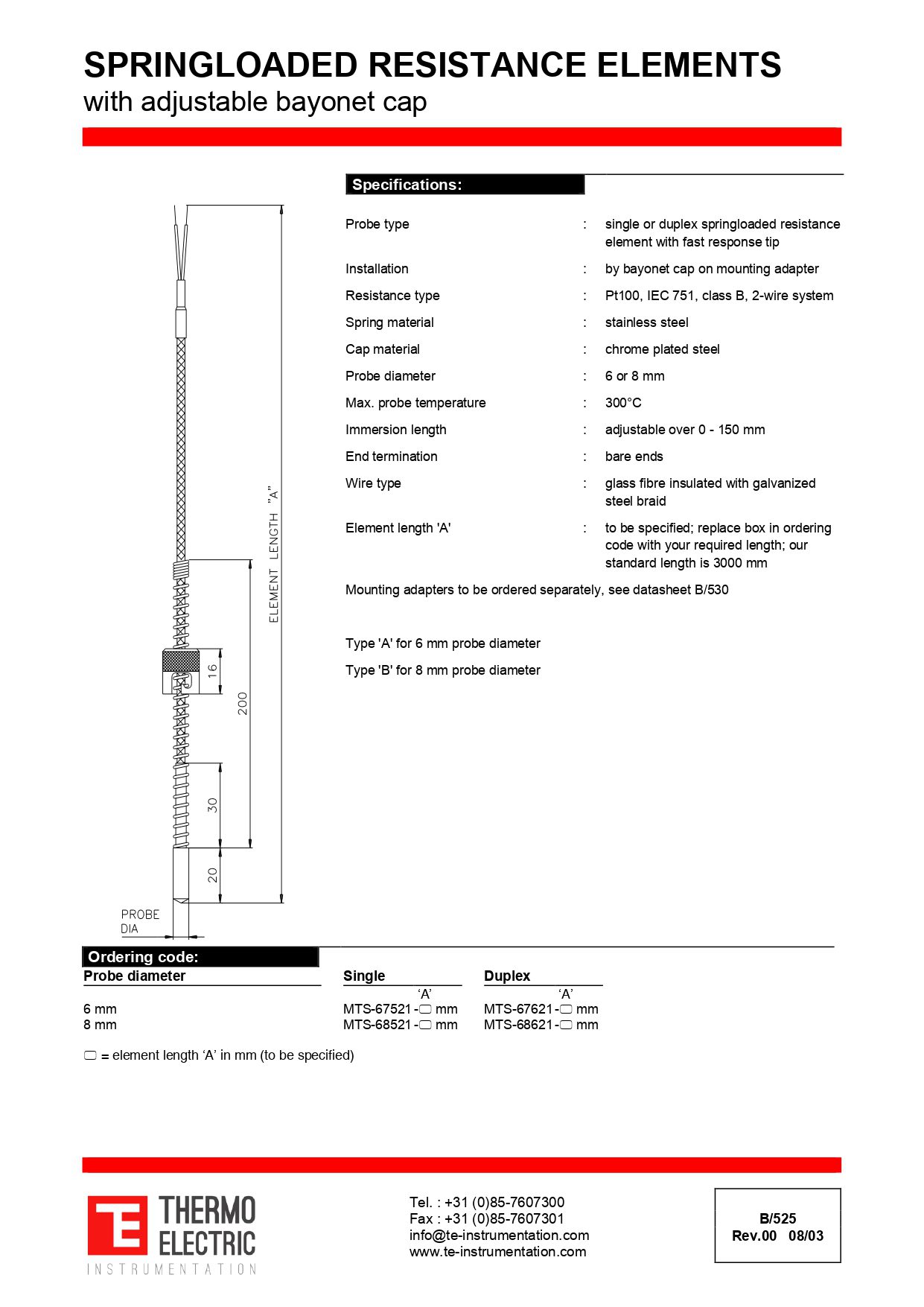

Spring-Loaded Resistance Elements with Adjustable Bayonet Cap

Spring-Loaded Resistance Elements with Adjustable Bayonet Cap

Our Spring-Loaded Resistance Elements with Adjustable Bayonet Cap are part of Thermo Electric’s industrial temperature sensor range. Product code B525 is retained for identification. Review the datasheet for construction, specification and application details.

Product code: B525

Ordering information: Quote product code B525 when enquiring so the correct datasheet variant can be referenced.

Download datasheet

Enquire about this product: Contact Thermo Electric with the product code, application details and any approval requirements so the team can confirm the correct specification.

SKU:B525-4500 Category: Tag:
Specification Summary
  • Probe type: single or duplex springloaded resistance element with fast response tip.
  • Installation: by bayonet cap on mounting adapter.
  • Resistance type: Pt100, IEC 60751 class B, 2-wire system.
  • Spring material: stainless steel.
  • Cap material: chrome plated steel.
  • Probe diameter: 6 or 8 mm.
  • Max. probe temperature: 300 °C.
  • Immersion length: adjustable over 0 – 150 mm.
  • End termination: bare ends.
  • Wire type: glass fibre insulated with galvanized steel braid.
  • Element length ‘A’: to be specified; standard length is 3000 mm.
  • Mounting adapters to be ordered separately; see datasheet B/530.
  • Type ‘A’ for 6 mm probe diameter; Type ‘B’ for 8 mm probe diameter.
