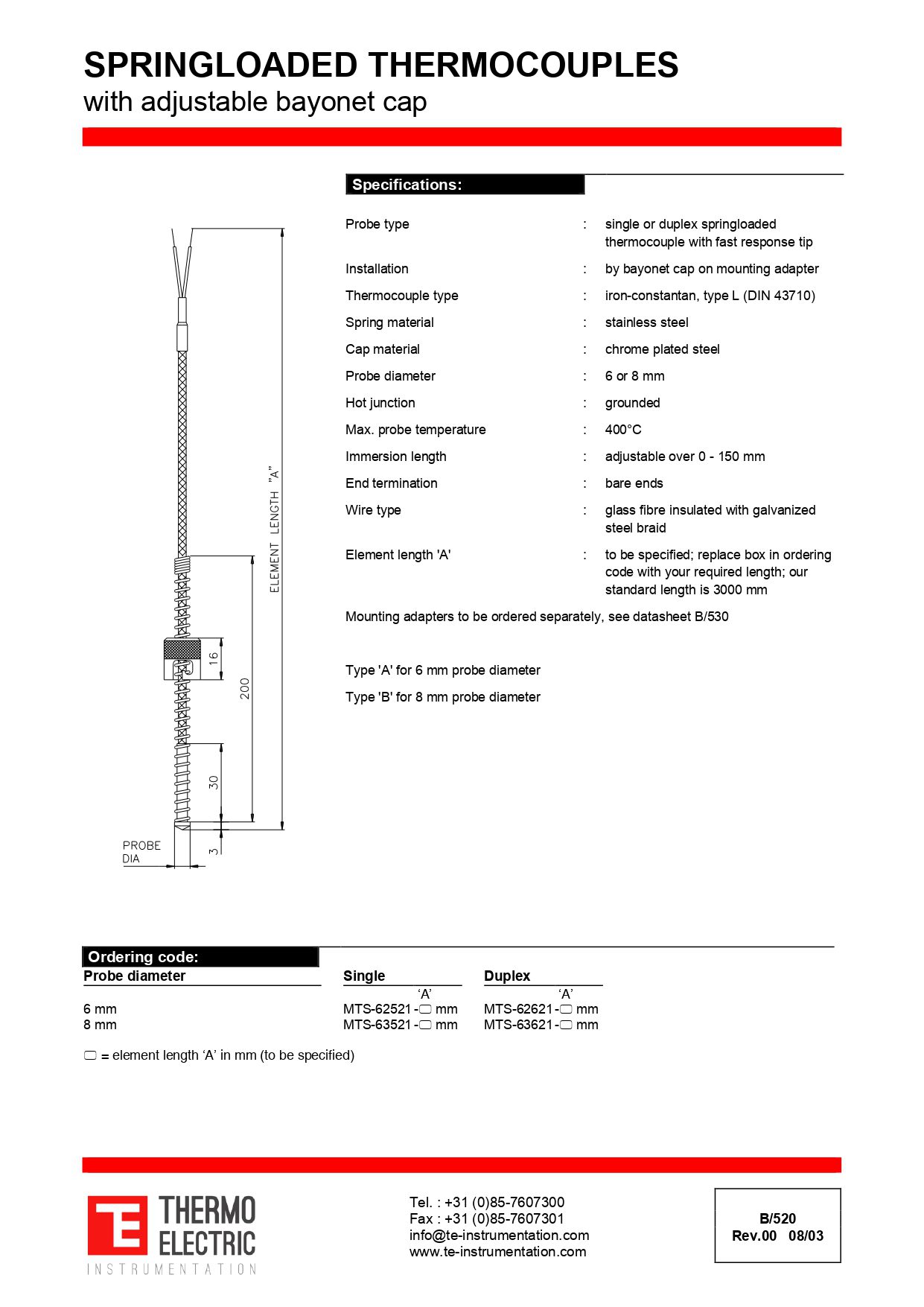

Specification Summary
- Probe type: single or duplex springloaded thermocouple with fast response tip.
- Installation: by bayonet cap on mounting adapter.
- Thermocouple type: iron-constantan, type J; formally known as type L (DIN 43710).
- Tolerance: ASTM E230/ANSI MC96.1 standard tolerance; IEC 60584 Class 2.
- Spring material: stainless steel.
- Cap material: chrome plated steel.
- Probe diameter: 6 or 8 mm.
- Hot junction: grounded.
- Max. probe temperature: 400 °C.
- Immersion length: adjustable over 0 – 150 mm.
- End termination: bare ends.
- Wire type: glass fibre insulated with galvanized steel braid.
- Element length 'A': to be specified; standard length is 3000 mm.
- Mounting adapters to be ordered separately; see datasheet B/530.
- Type 'A' for 6 mm probe diameter; Type 'B' for 8 mm probe diameter.
