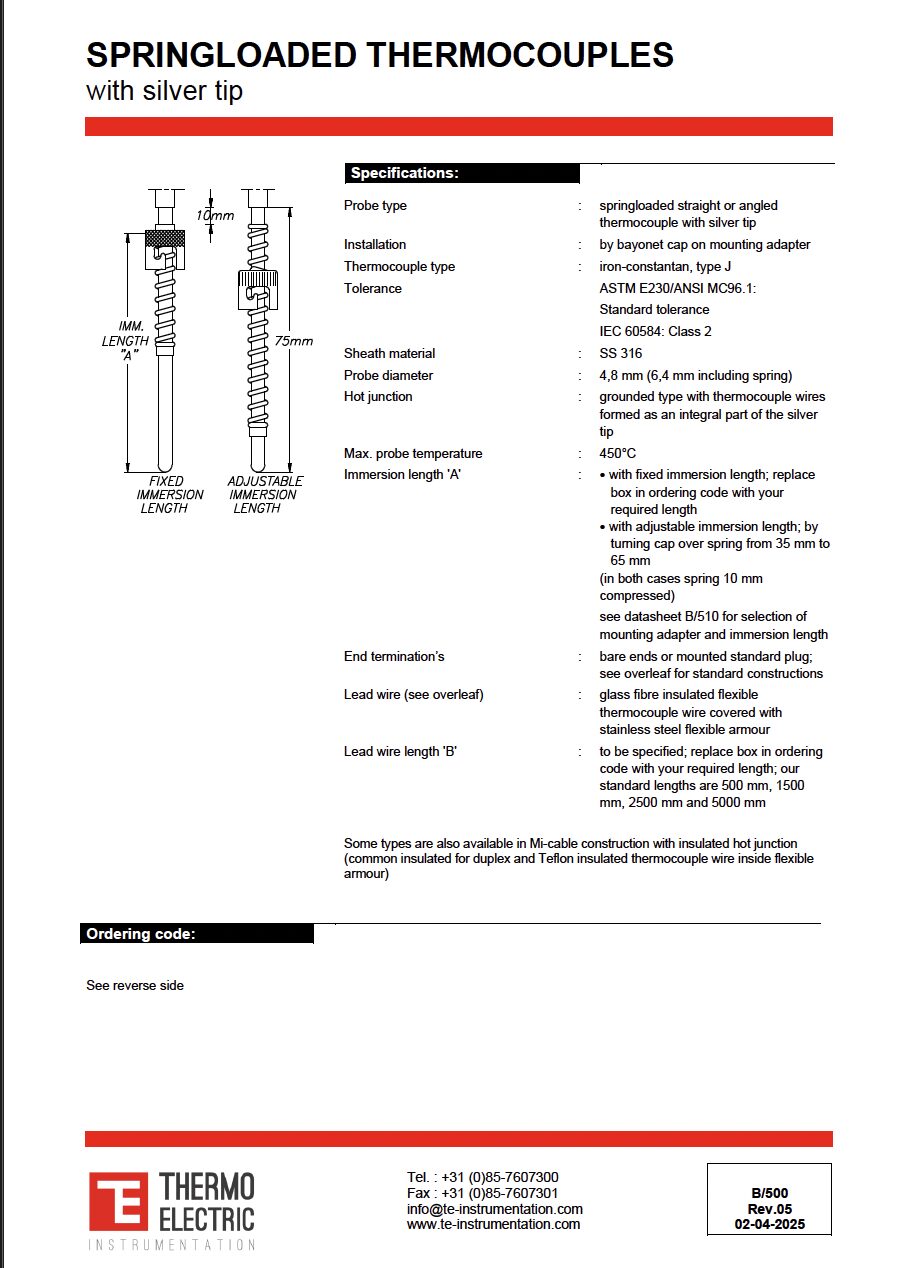

Specification Summary
- Probe type: springloaded straight or angled thermocouple with silver tip.
- Installation: by bayonet cap on mounting adapter.
- Thermocouple type: iron-constantan, type J.
- Tolerance: ASTM E230/ANSI MC96.1 standard tolerance; IEC 60584 Class 2.
- Sheath material: SS 316.
- Probe diameter: 4.8 mm, 6.4 mm including spring.
- Hot junction: grounded type with thermocouple wires formed as an integral part of the silver tip.
- Max. probe temperature: 450 °C.
- Immersion length 'A': fixed immersion length, or adjustable immersion length by turning cap over spring from 35 mm to 65 mm; spring 10 mm compressed in both cases.
- End termination: bare ends or mounted standard plug; see datasheet for standard constructions.
- Lead wire: glass fibre insulated flexible thermocouple wire covered with stainless steel flexible armour.
- Lead wire length 'B': to be specified; standard lengths are 500 mm, 1500 mm, 2500 mm and 5000 mm.
- Some types are also available in Mi-cable construction with insulated hot junction.
