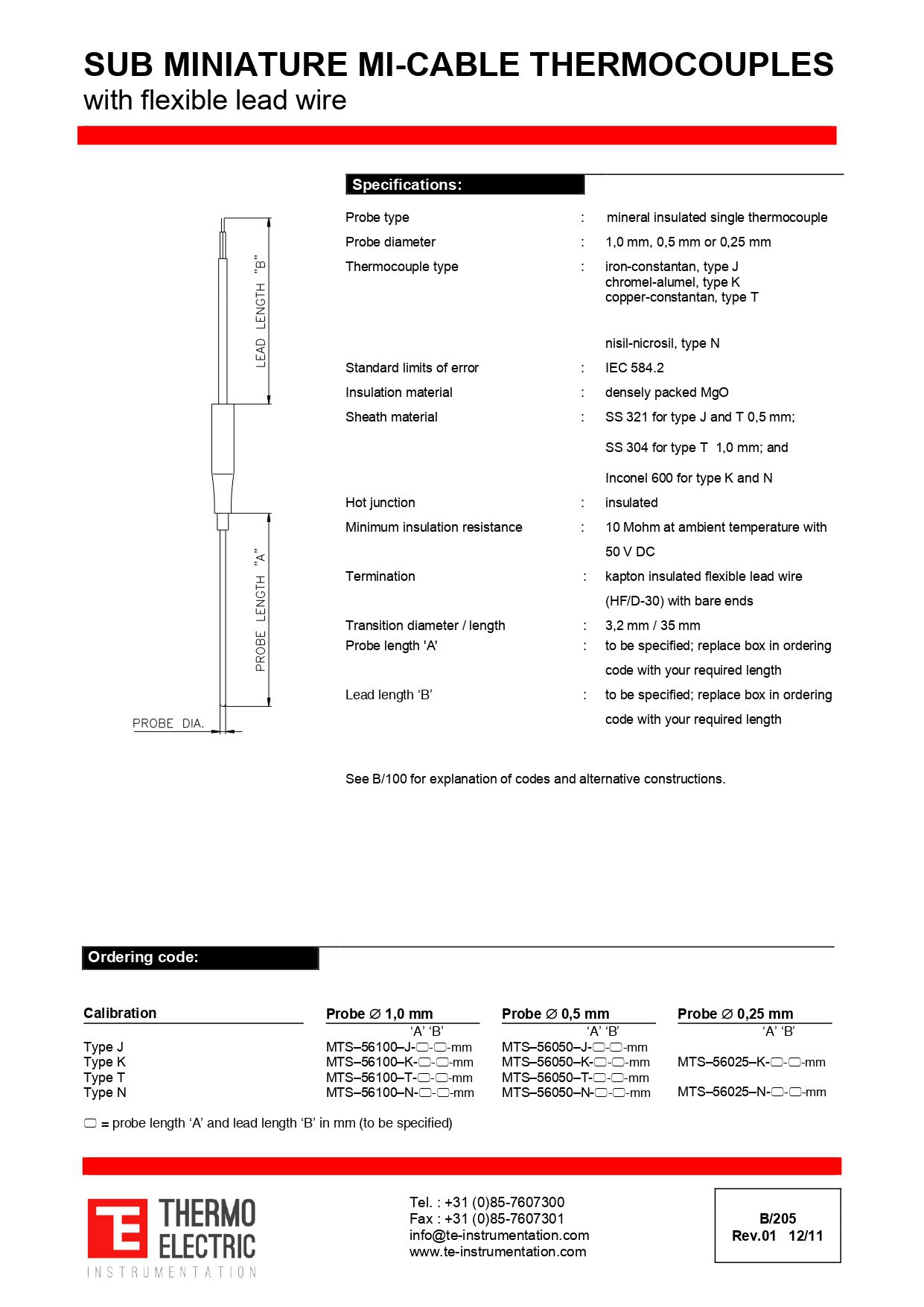

Specification Summary
- Probe type: mineral insulated single thermocouple.
- Probe diameter: 1.0 mm, 0.5 mm or 0.35 mm.
- Thermocouple types: iron-constantan type J, chromel-alumel type K, copper-constantan type T, and nisil-nicrosil type N.
- Tolerance: ASTM E230/ANSI MC96.1 standard tolerance; IEC 60584 Class 2.
- Insulation material: densely packed MgO.
- Sheath material: SS 321 for type J and T at 0.5 mm, SS 304 for type T at 1.0 mm, and Inconel 600 for type K and N.
- Hot junction: insulated.
- Minimum insulation resistance: 10 Mohm at ambient temperature with 50 V DC.
- Termination: Kapton insulated flexible lead wire (HF/D-30) with bare ends.
- Transition diameter / length: 3.2 mm / 35 mm.
- Probe length 'A' and lead wire length 'B': to be specified; replace box in ordering code with required length.
- See B/100 for explanation of codes and alternative constructions.
