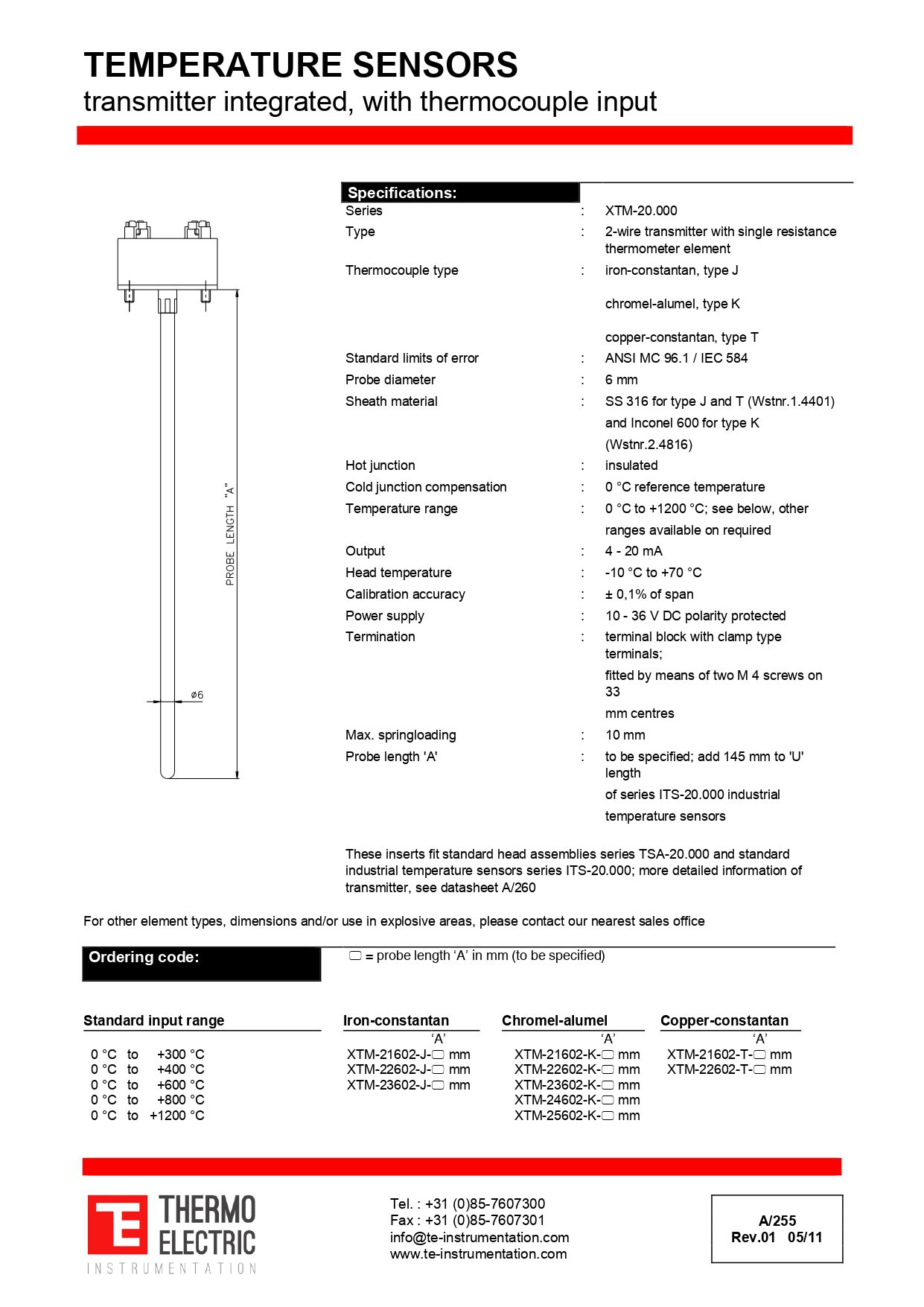

Specification Summary
- Series: XTM-20.000.
- Type: 2-wire transmitter with single thermocouple input.
- Thermocouple types: iron-constantan type J, chromel-alumel type K and copper-constantan type T.
- Standard limits of error: ANSI MC 96.1 / IEC 584.
- Probe diameter: 6 mm.
- Sheath material: SS 316 for type J and T; Inconel 600 for type K.
- Hot junction: insulated.
- Cold junction compensation: 0 °C reference temperature.
- Temperature range: 0 °C to +1200 °C; other ranges available on request.
- Output: 4-20 mA.
- Head temperature: -10 °C to +70 °C.
- Calibration accuracy: +/- 0.1% of span.
- Power supply: 10-36 V DC, polarity protected.
- Termination: terminal block with clamp type terminals, fitted by two M4 screws on 33 mm centres.
- Max. springloading: 10 mm.
- Probe length 'A': to be specified; add 145 mm to 'U' length of series ITS-20.000 industrial temperature sensors.
- These inserts fit standard head assemblies series TSA-20.000 and standard industrial temperature sensors series ITS-20.000.
