Temperature Sensors with Replaceable Insert

Temperature Sensors with Replaceable Insert

Our Temperature Sensors with Replaceable Insert are part of Thermo Electric’s industrial temperature sensor range. Product code D215 is retained for identification. Review the datasheet for construction, specification and application details.

Product code: D215

Ordering information: Quote product code D215 when enquiring so the correct datasheet variant can be referenced.

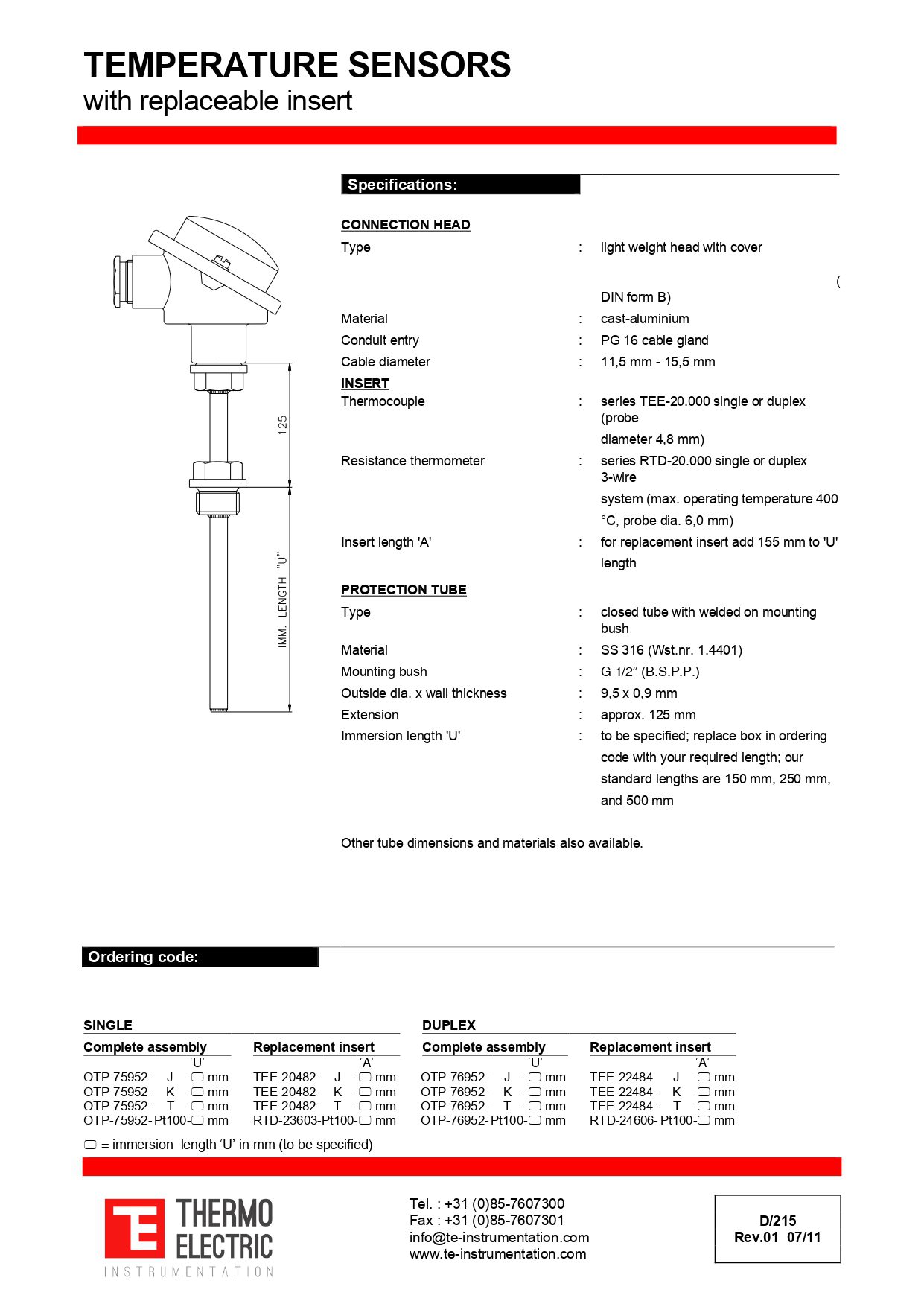

Download datasheet

Enquire about this product: Contact Thermo Electric with the product code, application details and any approval requirements so the team can confirm the correct specification.

SKU:D215-4550 Category: Tags:,
Connection Head
  • Type: light weight head with cover, DIN form B.
  • Material: cast-aluminium.
  • Conduit entry: PG 16 cable gland.
  • Cable diameter: 11.5 mm – 15.5 mm.
Insert
  • Thermocouple: series TEE-20.000, single or duplex, probe diameter 4.8 mm.
  • Resistance thermometer: series RTD-20.000, single or duplex, 3-wire system, maximum operating temperature 400 °C, probe diameter 6.0 mm.
  • Insert length 'A': for replacement insert add 155 mm to 'U' length.
Protection Tube
  • Type: closed tube with welded-on mounting bush.
  • Material: SS 316 (Wst.nr. 1.4401).
  • Outside diameter x wall thickness: 9.5 x 0.9 mm.
  • Extension: approximately 125 mm.
  • Immersion length 'U': to be specified; replace box in ordering code with your required length; standard lengths are 150 mm, 250 mm and 500 mm.
  • Other tube dimensions and materials are also available.
