Temperature Transmitters

Temperature Transmitters

Our Temperature Transmitters are part of Thermo Electric’s industrial temperature sensor range. Product code A260 is retained for identification. Review the datasheet for construction, specification and application details.

Product code: A260

Ordering information: Quote product code A260 when enquiring so the correct datasheet variant can be referenced.

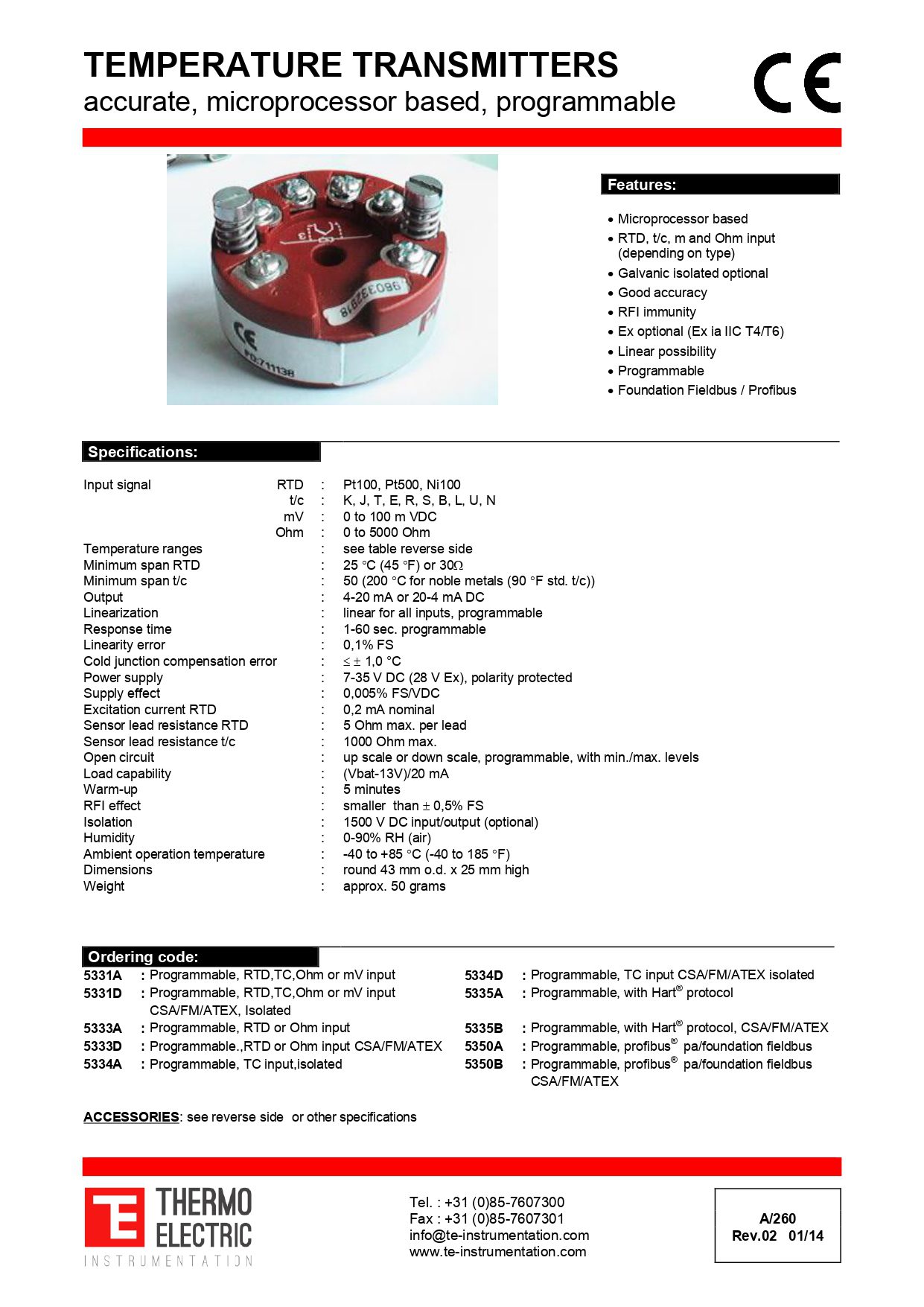

Download datasheet

Enquire about this product: Contact Thermo Electric with the product code, application details and any approval requirements so the team can confirm the correct specification.

SKU:A260-4414 Category: Tag:
Features
  • Microprocessor based temperature transmitter.
  • RTD, thermocouple, mV and Ohm input depending on type.
  • Optional galvanic isolation.
  • Good accuracy and RFI immunity.
  • Ex optional, Ex ia IIC T4/T6.
  • Linearisation, programmable response and Foundation Fieldbus / Profibus options.
Specification Summary
  • Input signals: Pt100, Pt500, Ni100; thermocouple types K, J, T, E, R, S, B, L, U and N; 0 to 100 mV DC; 0 to 5000 Ohm.
  • Output: 4-20 mA or 20-4 mA DC.
  • Linearization: linear for all inputs, programmable.
  • Response time: 1-60 seconds, programmable.
  • Linearity error: 0.1% FS.
  • Cold junction compensation error: 1.0 °C.
  • Power supply: 7-35 V DC, 28 V Ex, polarity protected.
  • Ambient operation temperature: -40 to +85 °C.
  • Dimensions: round, 43 mm outside diameter x 25 mm high.
Ranges and Notes
  • Thermocouple ranges include K, J, T, E, R, S, B, L, U, N, W3 and W5 depending on type.
  • Pt100 range: -200 to +850 °C.
  • Ni100 range: -60 to +250 °C.
  • Pt100 2-, 3- or 4-wire available; type 5333 is only available for 2- and 3-wire systems.
  • NAMUR NE43 classification; selected 5335 versions can be supplied with SIL 2 certification.
Accessories
  • Max. wire size terminals: 1 x 1.5 mm2.
  • Inner hole: 6 mm.
  • Vibration: IEC 68-2-6 test FC.
  • TRM-93121 special clip for rail mounting to DIN rail.
