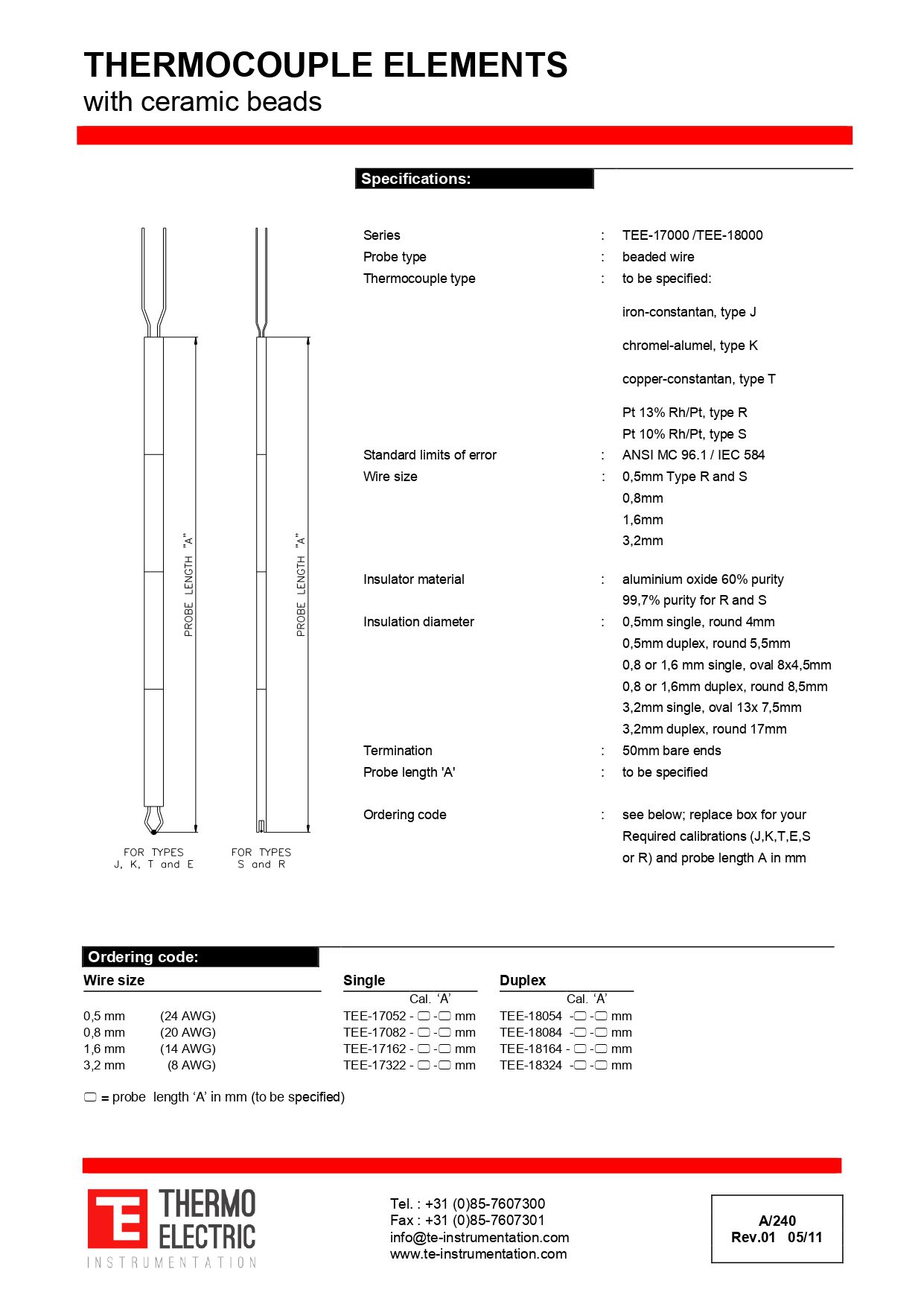

Specification Summary
- Series: TEE-17000 / TEE-18000.
- Probe type: beaded wire thermocouple elements with ceramic beads.
- Thermocouple types: iron-constantan type J, chromel-alumel type K, copper-constantan type T, Pt13%Rh/Pt type R and Pt10%Rh/Pt type S.
- Standard limits of error: ANSI MC 96.1 / IEC 584.
- Wire sizes: 0.5 mm, 0.8 mm, 1.6 mm and 3.2 mm.
- Insulator material: aluminium oxide 60% purity; 99.7% purity for type R and S.
- Insulation diameter options include 0.5 mm single round 4 mm, 0.5 mm duplex round 5.5 mm, 0.8 or 1.6 mm single oval 8 x 4.5 mm, 0.8 or 1.6 mm duplex round 8.5 mm, 3.2 mm single oval 13 x 7.5 mm, and 3.2 mm duplex round 17 mm.
- Termination: 50 mm bare ends.
- Probe length 'A': to be specified.
