Tube Skin Thermocouples with Connection Head Assembly

Tube Skin Thermocouples with Connection Head Assembly

Our Tube Skin Thermocouples with Connection Head Assembly are part of Thermo Electric’s industrial temperature sensor range. Product code A510 is retained for identification. Review the datasheet for construction, specification and application details.

Product code: A510

Ordering information: Quote product code A510 when enquiring so the correct datasheet variant can be referenced.

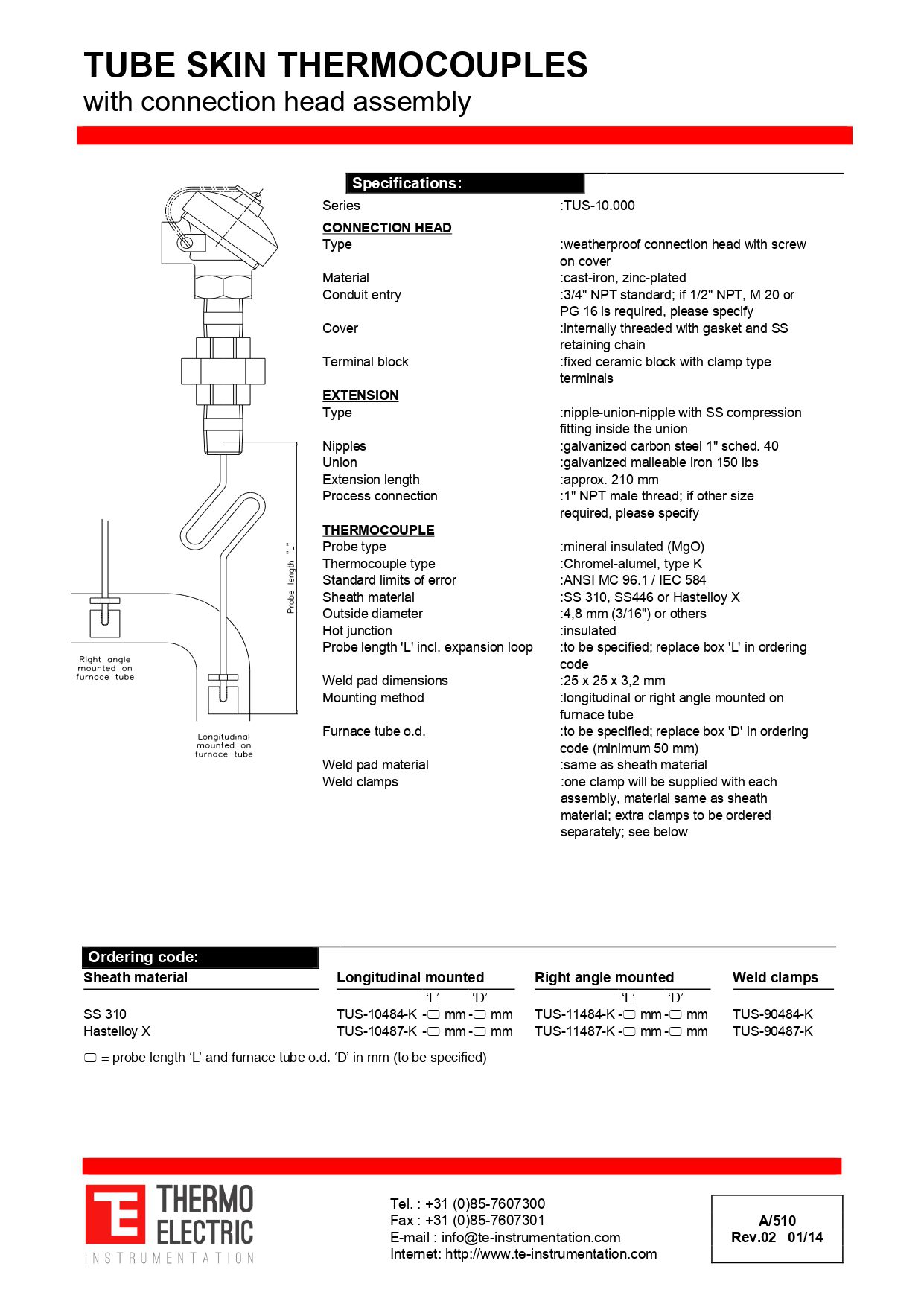

Download datasheet

Enquire about this product: Contact Thermo Electric with the product code, application details and any approval requirements so the team can confirm the correct specification.

SKU:A510-4442 Category: Tag:
Connection Head
  • Series: TUS-10.000.
  • Type: weatherproof connection head with screw-on cover.
  • Material: cast-iron, zinc-plated.
  • Conduit entry: 3/4 inch NPT standard; specify if 1/2 inch NPT, M20 or PG16 is required.
  • Cover: internally threaded with gasket and stainless steel retaining chain.
  • Terminal block: fixed ceramic block with clamp type terminals.
Extension
  • Type: nipple-union-nipple with SS compression fitting inside the union.
  • Nipples: galvanized carbon steel, 1 inch schedule 40.
  • Union: galvanized malleable iron, 150 lbs.
  • Extension length: approximately 210 mm.
  • Process connection: 1 inch NPT male thread; specify if another size is required.
Thermocouple
  • Probe type: mineral insulated (MgO).
  • Thermocouple type: Chromel-alumel, type K.
  • Standard limits of error: ANSI MC 96.1 / IEC 584.
  • Sheath material: SS 310, SS446 or Hastelloy X.
  • Outside diameter: 4.8 mm (3/16 inch) or others.
  • Hot junction: insulated.
  • Probe length 'L' including expansion loop: to be specified; replace box 'L' in ordering code.
  • Weld pad dimensions: 25 x 25 x 3.2 mm.
  • Mounting method: longitudinal or right angle mounted on furnace tube.
Mounting Details
  • Furnace tube outside diameter: to be specified; replace box 'D' in ordering code, minimum 50 mm.
  • Weld pad material: same as sheath material.
  • One weld clamp is supplied with each assembly, material same as sheath material; extra clamps to be ordered separately.
