Industrial Temperature Sensors DIN Type Screwed Bar Stock Thermowell

Industrial Temperature Sensors DIN Type Screwed Bar Stock Thermowell

Our Industrial Temperature Sensors DIN Type Screwed Bar Stock Thermowell are part of Thermo Electric’s industrial temperature sensor and thermowell range. Product code A120 is retained for identification. Review the datasheet for construction, material, connection and process-protection details.

Product code: A120

Ordering information: Quote product code A120 when enquiring so the correct datasheet variant can be referenced.

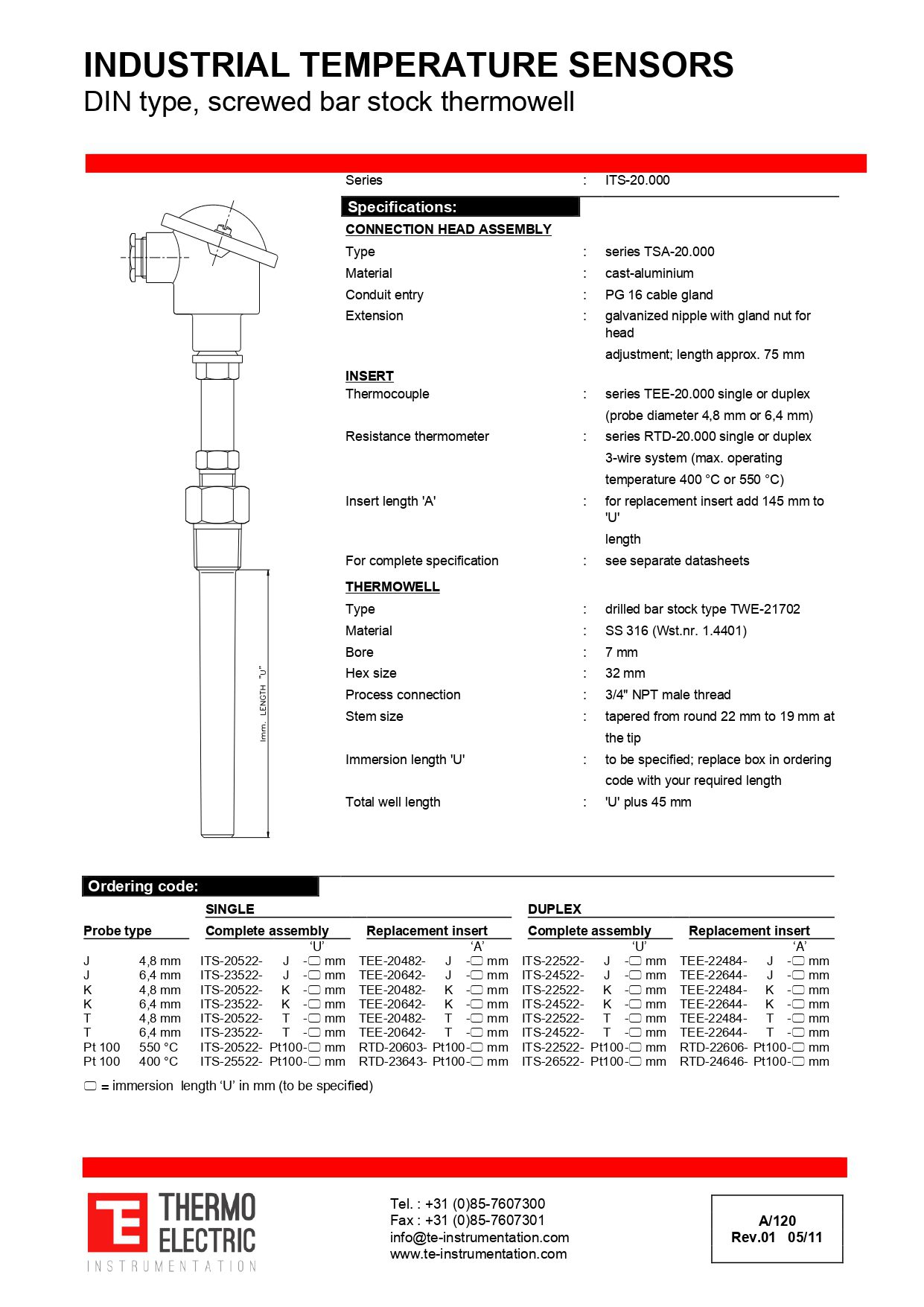

Download datasheet

Enquire about this product: Contact Thermo Electric with the product code, application details and any approval requirements so the team can confirm the correct specification.

SKU:A120-4372 Categories:, Tags:,
Connection Head Assembly
  • Series: ITS-20.000.
  • Type: series TSA-20.000.
  • Material: cast-aluminium.
  • Conduit entry: PG16 cable gland.
  • Extension: galvanized nipple with gland nut for head adjustment, approximately 75 mm length.
Insert
  • Thermocouple: series TEE-20.000 single or duplex, probe diameter 4.8 mm or 6.4 mm.
  • Resistance thermometer: series RTD-20.000 single or duplex, 3-wire system, maximum operating temperature 400 °C or 550 °C.
  • Insert length 'A': for replacement insert add 145 mm to 'U' length.
  • For complete specification, see separate insert datasheets.
Thermowell
  • Type: drilled bar stock type TWE-21702.
  • Material: SS 316 (Wst.nr. 1.4401).
  • Bore: 7 mm.
  • Hex size: 32 mm.
  • Process connection: 3/4 inch NPT male thread.
  • Stem size: tapered from round 22 mm to 19 mm at the tip.
  • Immersion length 'U': to be specified; replace box in ordering code with required length.
  • Total well length: 'U' plus 45 mm.
