Industrial Temperature Sensors with Tube Type Thermowell

Industrial Temperature Sensors with Tube Type Thermowell

Our Industrial Temperature Sensors with Tube Type Thermowell are part of Thermo Electric’s industrial temperature sensor and thermowell range. Product code A140 is retained for identification. Review the datasheet for construction, material, connection and process-protection details.

Product code: A140

Ordering information: Quote product code A140 when enquiring so the correct datasheet variant can be referenced.

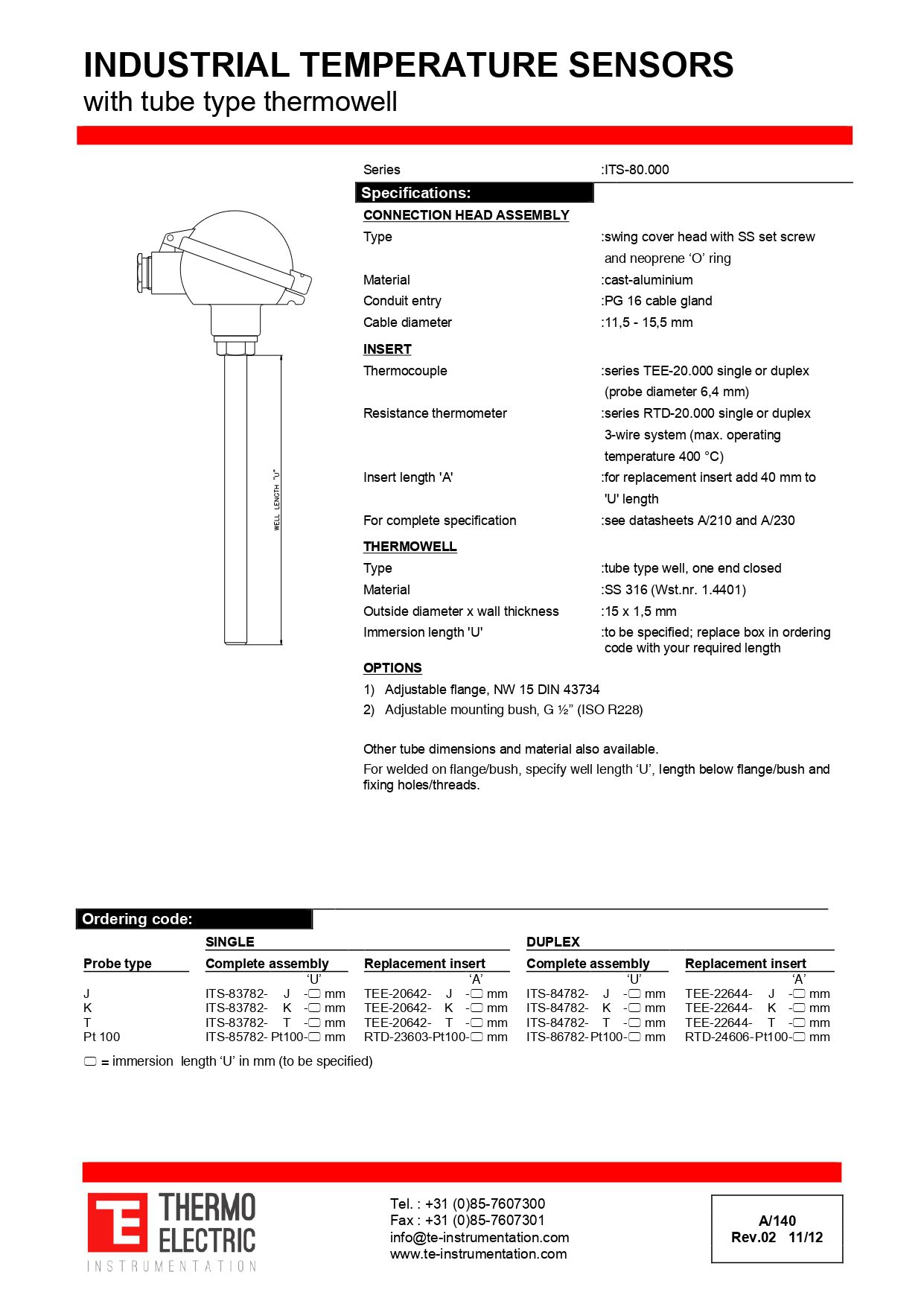

Download datasheet

Enquire about this product: Contact Thermo Electric with the product code, application details and any approval requirements so the team can confirm the correct specification.

SKU:A140-4378 Categories:, Tags:,
Connection Head Assembly
  • Series: ITS-80.000.
  • Type: swing cover head with SS set screw.
  • Material: cast-aluminium.
  • Conduit entry: PG16 cable gland.
  • Cable diameter: 11.5 – 15.5 mm.
Insert
  • Thermocouple: series TEE-20.000 single or duplex, probe diameter 4.8 mm or 6.4 mm.
  • Resistance thermometer: series RTD-20.000 single or duplex, 3-wire system, maximum operating temperature 400 °C or 550 °C.
  • Insert length 'A': for replacement insert add 40 mm to 'U' length.
  • For complete specification, see separate insert datasheets.
Thermowell
  • Type: tube type well, one end closed.
  • Material: SS 316 (Wst.nr. 1.4401).
  • Outside diameter x wall thickness: 15 x 1.5 mm.
  • Immersion length 'U': to be specified; replace box in ordering code with required length.
  • Other tube dimensions and materials also available.
Options
  • Adjustable flange, NW 15 DIN 43734.
  • Specify length below flange or bush and fixing holes or threads where required.
