Miniature Mi-Cable Thermocouples Custom Built

Miniature Mi-Cable Thermocouples Custom Built

Our Miniature Mi-Cable Thermocouples Custom Built are part of Thermo Electric’s miniature and mineral insulated temperature sensor range. Product code B100 is retained for identification. Review the datasheet for construction, insulation, lead wire and installation details.

Product code: B100

Ordering information: Quote product code B100 when enquiring so the correct datasheet variant can be referenced.

Download datasheet

Enquire about this product: Contact Thermo Electric with the product code, application details and any approval requirements so the team can confirm the correct specification.

SKU:B100-4460 Categories:, Tag:
Thermocouple and Tolerance Codes
  • Calibration codes include J iron-constantan, K chromel-alumel, T copper-constantan, E chromel-constantan, N nicrosil-nisil, S Pt/Pt 10% Rh and R Pt/Pt 13% Rh.
  • Tolerance classes include IEC 60584 Class 1 and Class 2, plus ASTM E230/ANSI MC96.1 standard and special limits of error.
  • EMF values are as per IEC 60584-1 unless otherwise noted.
Sheath and Junction Options
  • Sheath diameter codes cover 0.25 mm through 6.4 mm, including 1/16 inch, 1/8 inch, 3/16 inch and 1/4 inch options.
  • Hot junction codes include single insulated, single grounded, reduced tip variants, and duplex insulated, common insulated or grounded variants.
  • Sheath materials include SS304, SS316, SS310, SS321, Inconel 600, Nicrobel C and NiCroSil, depending on calibration.
Cable, Wire and Termination Options
  • Wire type options include PVC, Kapton, Teflon, fibreglass, copper braided, stainless steel braided and flexible armour constructions.
  • Immersion length and wire length are specified in millimetres using four-character codes; 10 metres and above use m in the code.
  • Connector options include bare ends, standard, miniature, high-temperature, ceramic, phenolic, Lemo and junction box connector variants.
Options
  • Options include no option, wire clamp bracket, bracket with fitting, moisture proof jacket, spring on transition and pot seal M8 x 1 with locknuts.
  • Reduced tip length is 25 mm.

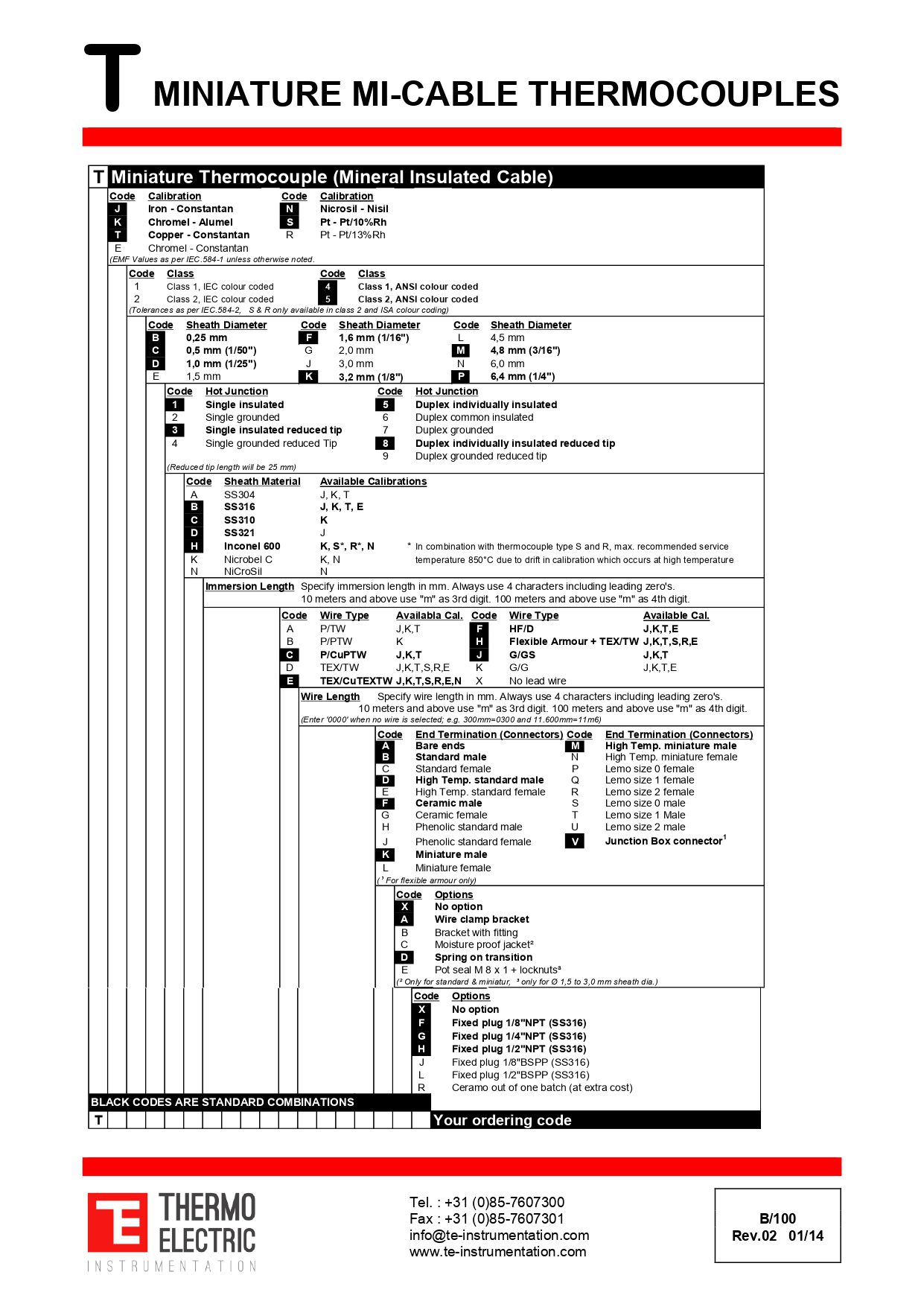

  • Use this datasheet as the build-code reference for custom miniature Mi-Cable thermocouple constructions.
