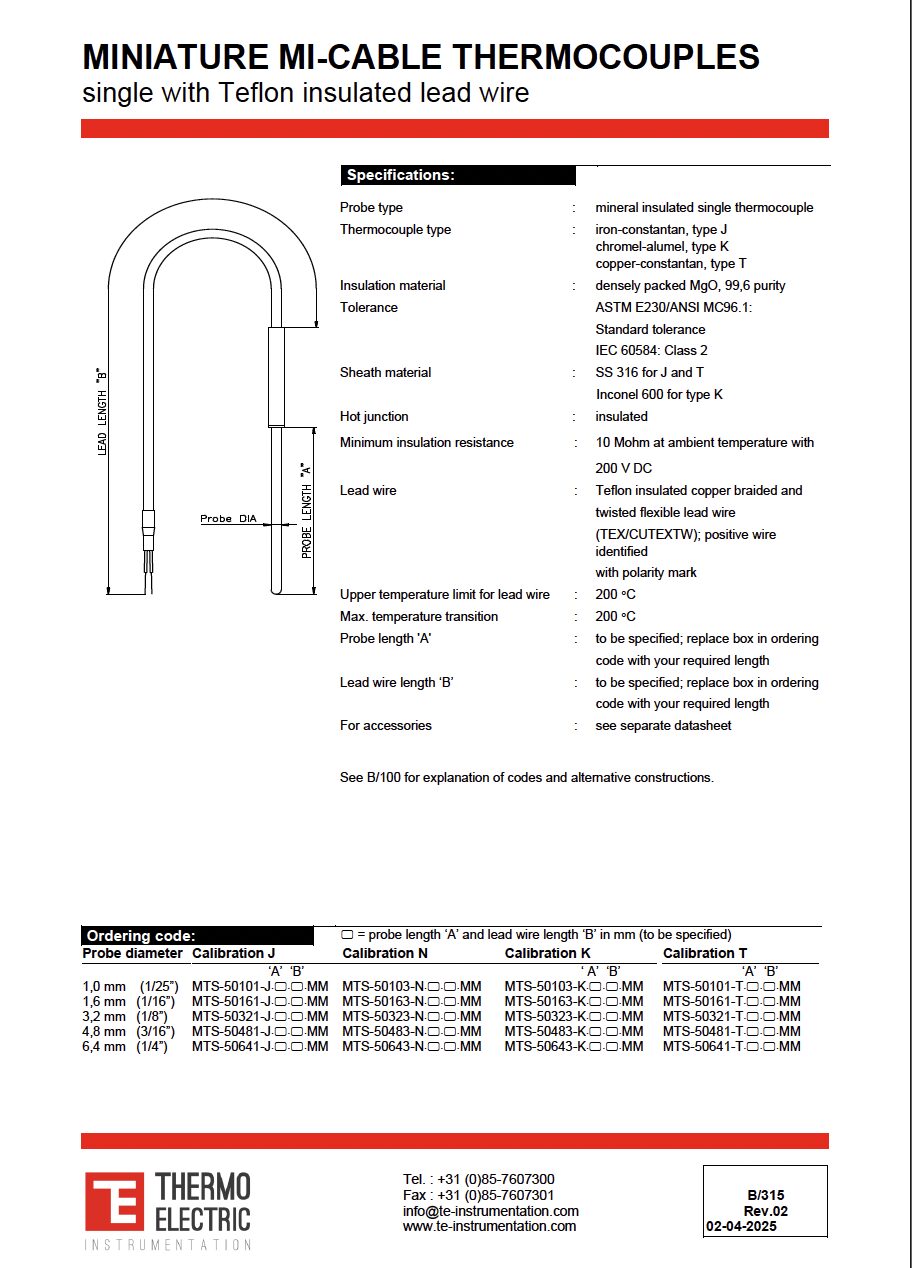

Specification Summary
- Probe type: mineral insulated single thermocouple
- Thermocouple types: J, K and T
- Insulation material: densely packed MgO, 99.6% purity
- Tolerance: ASTM E230/ANSI MC96.1 standard tolerance; IEC 60584 Class 2
- Sheath material: SS 316 for J and T; Inconel 600 for type K
- Hot junction: insulated
- Minimum insulation resistance: 10 Mohm at ambient temperature with 200 V DC
- Lead wire: Teflon insulated copper braided and twisted flexible lead wire
- Upper temperature limit for lead wire: 200 °C
- Max. temperature transition: 200 °C
- Probe length 'A' and lead wire length 'B': to be specified when ordering
