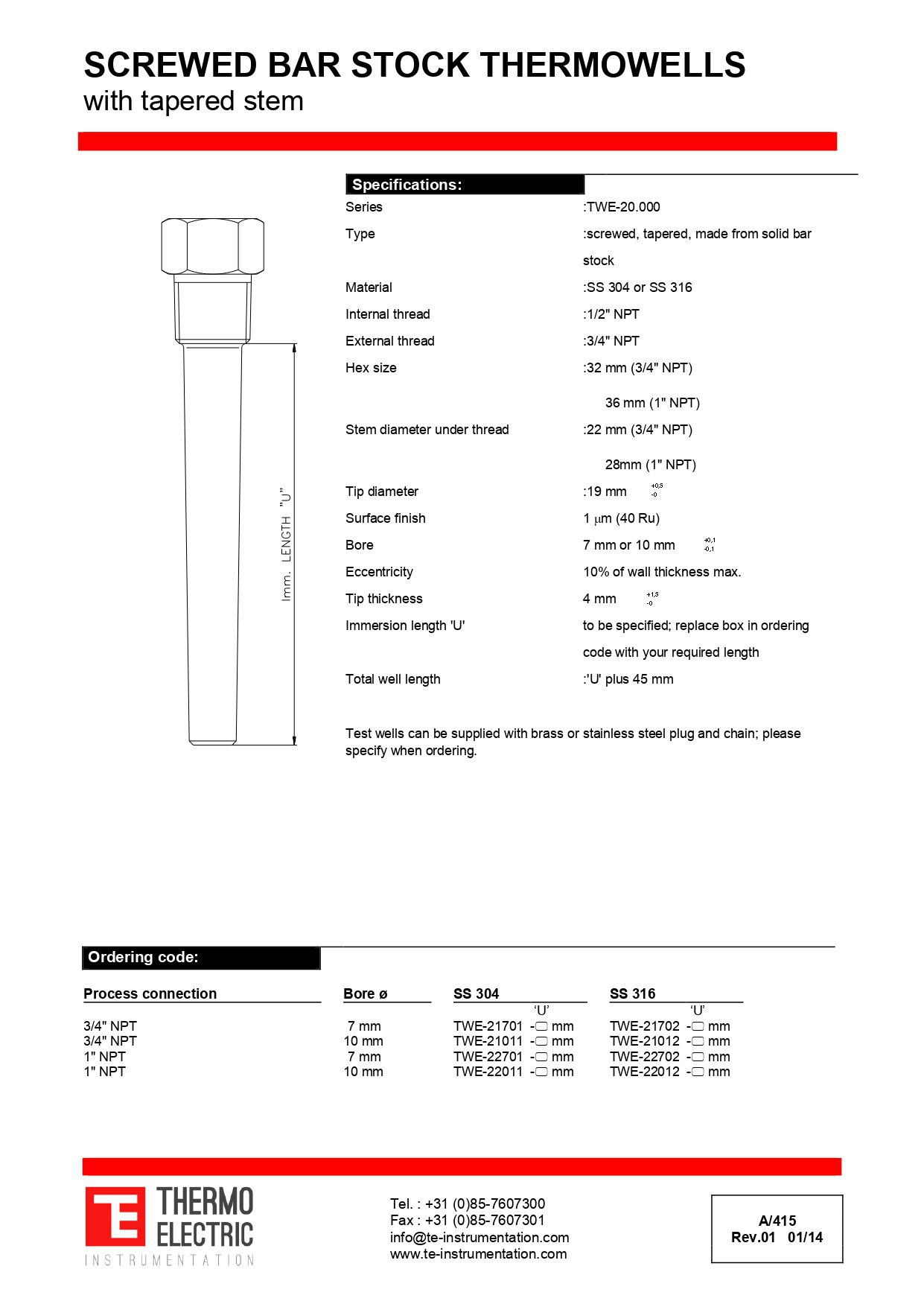

Specification Summary
- Series: TWE-20.000.
- Type: screwed, tapered, made from solid bar stock.
- Material: SS 304 or SS 316.
- Internal thread: 1/2 inch NPT.
- External thread: 3/4 inch NPT or 1 inch NPT.
- Hex size: 32 mm for 3/4 inch NPT or 36 mm for 1 inch NPT.
- Stem diameter under thread: 22 mm for 3/4 inch NPT or 28 mm for 1 inch NPT.
- Tip diameter: 19 mm.
- Bore: 7 mm or 10 mm.
- Surface finish: 1 micron (40 Ru).
- Eccentricity: 10% of wall thickness maximum.
- Tip thickness: 4 mm.
- Immersion length 'U': to be specified; replace box in ordering code with required length.
- Total well length: 'U' plus 45 mm.
- Test wells can be supplied with brass or stainless steel plug and chain; specify when ordering.
